| Model NO. | 1041 |

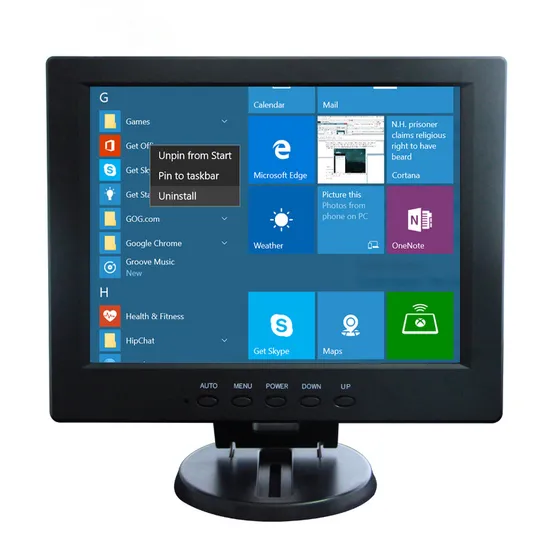

| Panel size | 10 inch lcd monitor with Grace A panel |
| Visual size | 210*160mm |
| Standard Resolution | 1024x768 |
| Number of Colors | 16.2M |
| Brightness | LCD panel:300cd/m2 |
| Response time | 2ms |
| View angle | Horizontal:160° |
| Vertical:130° | |
| Contrase ratio | 400:01:00 |
| Video input format | (analog) RGB |
| Connector | VGA (D-sub)(HDMI,DVI ,AV ,TV USB inputs are optional ) |
| Frequency | 30~80KHz/60~75Hz |
| Power supply | External Power Supply:100 to 240V AC |
| (DC 12V) | |
| Operation Environment | Workable Temperature:-10 to 60°C |
| Storage temperature:-20 to 70°C | |
| Operate relative humidity:20% to 80%; | |
| storage relative humidity:10% to 90% | |
| Net weight | 2.5 Kgs/pcs |
| Gross weight | 3.0 Kgs/pcs |
| Power consumption | Max 30W |
| Setup (optional) | 1) provide wall brackets for wall-mounting, |
| VESA 75mm&100mm | |
| 2) provide base to support the monitor | |
| OSD control | AUTO,+,POWER,-,MENU |
| brightness,contrast ratio,auto adjustment,phase position,clock,Languages,function, Install,reset | |
| Certificate | CE, ROHS,FCC etc |
| Warranty | 3 year,provide spare parts |
| Monitor size | 267*215*50mm |
| (not include base) | |
| Each unit box size | 333*135*295mm |
| Package size | 6pcs in a carton,carton size:650*450*390mm |
