US$60,000.00-700,000.00
|
1 set
(MOQ)
|
Basic Info.
Feed Opening
Based on Model
Crushing Degree
Intermediate Crusher
Crushing Style
Grinding and Impact
Cutter Material
Hard Alloy
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
>300MPA
Tongs′ Features
Adjustable Tongs
Transport Package
Wrapped by Plastic Sheeting or Wooden Box
Specification
based on model
Production Capacity
100 Set/Month
Product Description
Introduction:

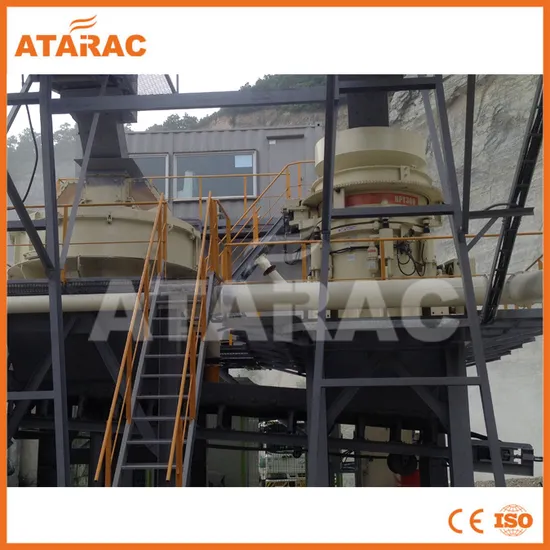

HPY series mutil-cylinder cone crusher developed and manufactured by our company is currently the most advanced cone crusher in whole China. It aims at the high end market and is integrated with the advanced mechanical, electrical and hydraulic technologies as a whole, which achieves the perfect crushing efficiency. HPY cone crusher features in robust casting steel frame, forged alloy main shaft, and high accurate gear transmission system. Combined with one suitable crushing chamber from all optional and with PLC automatic control system, the HPY cone crusher could fully play its performance and advantages. Compared with related similar type crusher, HPY has advantages of larger production capacity, bigger crushing ratio, better end-products shape, lower power consumption, higher automation, reliability, easy operation, and lower wearing part cost, etc.
Feature: Laminating crushing, larger capacity, very good final products shape. Fixed main shaft, larger crushing force. The high-strength forging main shaft is super robust and durable. Hydraulic protection and chamber clearing system. Hydraulic motor adjusting system, reliable and quick. Best anti- dust system ensures the clean of lubrication system. PLC intelligent operating system. More than 90% spare parts can be changed with Metso, includeing mantle, bowl liner, mainshaft, etc.
Technical Parameter
Model | Installation Power (kw) | 6mm | 8mm | 10mm | 13mm | 16mm | 19mm | 22mm | 25mm | 32mm | 38mm | 45mm | 51mm |
HPY300 | 220 | 75-95 | 100-130 | 110-140 | 145-180 | 170-215 | 190-230 | 220-260 | 225-275 | 245-320 | 300-375 | 345-430 | |
HPY400 | 315 | | 105-140 | 135-170 | 180-225 | 215-275 | 250-320 | 275-345 | 285-365 | 315-425 | 350-480 | 400-540 | 455-615 |
HPY500 | 400 | | 135-170 | 170-220 | 225-290 | 270-245 | 310-400 | 340-425 | 360-450 | 400-530 | 425-585 | 500-670 | 560-770 |
HPY800 | 630 | | | 240-335 | 315-420 | 375-500 | 420-540 | 465-590 | 490-725 | 545-790 | 585-920 | 670-990 | 765-1100 |
Remarks: the above capacity is based on the limestone open operation with loose density 1.6t/m³, in case of close operation, the capacity is
15%-30% higher than in open operation.
Cavity Selection
Model | Cavity Type | Standard | Short Head |
Minimum setting (mm) A | Feed opening(mm)B | Minimum setting (mm) A | Feed opening(mm)B |
HPY300 | EF | | | 6 | 25 |
F | 13 | 107 | 6 | 25 |
M | 16 | 150 | 8 | 53 |
C | 20 | 211 | 10 | 77 |
EC | 25 | 233 | | |
HPY400 | EF | | | 6 | 30 |
F | 14 | 111 | 6 | 40 |
M | 20 | 198 | 8 | 52 |
C | 25 | 252 | 10 | 92 |
EC | 30 | 299 | | |
HPY500 | EF | | | 6 | 35 |
F | 16 | 133 | 8 | 40 |
M | 20 | 204 | 10 | 57 |
C | 25 | 286 | 13 | 95 |
EC | 30 | 335 | | |
HPY800 | EF | | | | |
F | 16 | 219 | 5 | 33 |
M | 25 | 267 | 10 | 92 |
C | 32 | 297 | 13 | 155 |
EC | 32 | 353 | | |
Remark:EF= Extra Fine F=Fine M=Medium C=Coarse EC=Extra Coarse
