US$8,500.00-9,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Paper Plate Specification
4-11 Inch
Machine Size
3500X1300X1850
Transport Package
Wooden/Nude
Specification
3500*1300*1850 mm
Production Capacity
300 Sets
Product Description

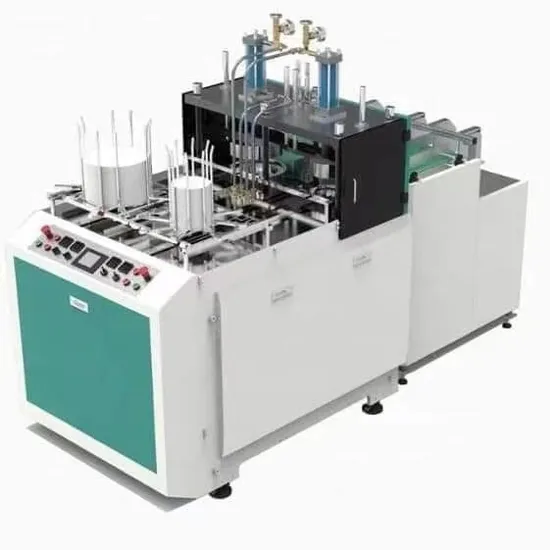

Automatic Paper Plate Dish Making Forming Machinery
Product Description
CW---ZT600A high speed paper disc forming (disc) machine is developed and designed independently according to the needs of the market. It has the functions of automatic drawing paper feeding, heating forming, automatic product production and constant temperature control, automatic counting and stacking, etc. It is a kind of equipment to produce various specifications.
Compared with CW-ZT 600A traditional paper disc machine, it has the advantages of higher production speed, more stability, more safety, more convenient operation and maintenance, more humanized structure design and so on.
CW-ZT600A automatic high speed paper disc machine adopts high speed hydraulic system, the production speed of each station is 45-75 per minute, the maximum pressure can reach 4 T, it has the characteristics of faster, more environmental protection, more energy saving and so on compared with the ordinary machine cylinder.
(1) The equipment adopts Delta PLC, Kunlun on-state screen, Inviteng frequency converter, Zhengtai low voltage electrical apparatus (2) Carton output device adopts automatic output, collection and accumulation device, can install counter to facilitate customer packaging, reduce labor input main technical parameters
Product Parameters
Model | CW-ZT600A |
Paper disc specifications | 4-11 inch (opposite sex paper plate) abrasive is interchangeable |
Materials | 180-800 g/m2of paper |
Production speed | 45-75 per minute |
Power requirements | 380V 50HZ |
Total power | 5.5KW |
Weight of equipment | 600KG |
PLC | Delta |
Touch screen | Kunlun |
Inverter | Inovance |
Low voltage electrical appliances | Zhengtai |
Photocell | Yangming(Taiwan) |
Hydraulic system | Asdanton |
Bearing | Harbin |
Upper silver guide | Taiwan |
Solenoid valve | Yadek |
Machine specifications | 3500*1330*1650 mm |
| Two sets of molds according your requirement.machine aluminum alloy shield |
ABOUT US
ZHEJIANG CHINAWORLD MACHINERY CO.,LTD is a profecianal machinery manufacturer and export company.Our machinery factory is specialized in producing all kinds of non-woven and paper products machine.Such as Face Mask Making Machiney,Non-woven Bag Making Machine,Non-Woven Cap and Shoe Cover Machine,Paper Cup Machine,Paper Straw Making Machine,Paper Plate Making Machine,Paper Cover Making Machine etc.
WORKSHOP
EXHIBITION
