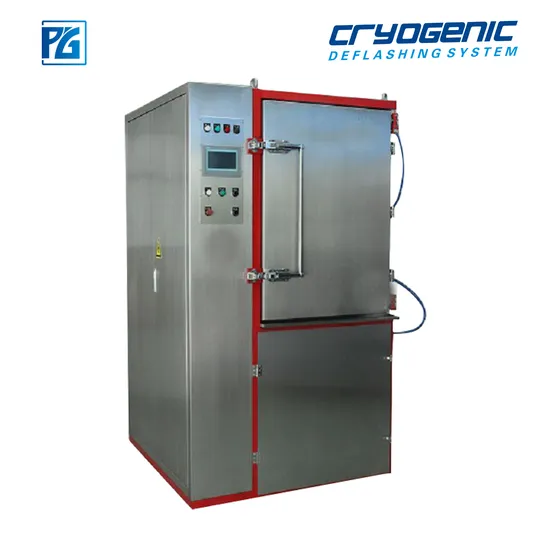

Deburring Solutions for Dumpers and Grommets - China Pege Machine

US$35,000.00-48,000.00 1 Set (MOQ)

Basic Info.

Model NO.
PG-60T/80T/120T/150T
Condition
New
Customized
Non-Customized
Automatic Grade
Semiautomatic
Structure
Vertical
Application
Deburring Dumpers,Grommets, Gaskets, O Rings
Usage
Remove Rubber and Plastic Excess Flashes
Material
SUS304
Pressure
0.5-0.7MPa
Temperature
Max -130c
Transport Package
Wood Carton for Long Distance Sea Transportation
Specification
5KW/6KW/7KW/8KW
Trademark
Frozen Shot
Origin
China
HS Code
8477800000
Production Capacity
40set Per Year

Product Description

Experience unparalleled precision and efficiency with our Automatic Rubber or Plastic Burr Cleaning Machine, expertly crafted in our leading-edge factory in China.
Product Description As temperatures decrease, rubber and plastic parts undergo a transformation, becoming hardened, brittle, and crystallized, losing their natural flexibility. Under these conditions, they are susceptible to breaking from external forces. The flash of molded products, being significantly thinner, becomes brittle before the main product itself at low temperatures. Our cryogenic deflashing machine leverages this principle, operating precisely when the flash is brittle but the product remains flexible. Utilizing high-speed, projected special plastic media, it meticulously clears out brittle burrs without damaging the product, ensuring high-quality results.
FUNCTIONS
Our state-of-the-art machine is designed for the effortless removal of flash from small rubber and plastic parts such as O-rings, gaskets, and other molded components, streamlining your production process.
Harnessing cryogenic processing technology, the flashes are initially frozen and subsequently eliminated by high-speed projection media, specifically Polycarbonate blast. This process significantly enhances the surface quality of molded rubber and plastic parts, ensuring superior finishes.
SPECIFICATIONS
TECHNICAL INFORMATION
MODE PG-60T PG-80T PG-100T/120T PG-150T
MACHINE PHOTO
SIZE(L*W*H) 1000*1000*1950MM 1100*1200*2000MM 1200*1250*2200MM 1300*1350*2250MM
WEIGHT 700KG 850KG 1000KG 1500KG
POWER Ac380v 50Hz Ac380v 50Hz Ac380v 50Hz Ac380v 50Hz
ELECTRICTY 6Kw*3Ph 7Kw*3Ph 8Kw*3Ph 9Kw*3Ph
TEMPERATURE -130 - +50ºC -130 - +50ºC -130 - +50ºC -130 - +50ºC
PRESSURE 0.5-0.7Mpa 0.5-0.7Mpa 0.5-0.7Mpa 0.5-0.7Mpa
BARRAEL CAPACITY 60L 80L 100L or 120L 150L
EFFECTIVE CAPACITY 20L 30L` 40L` 50L`
WHEEL SPEED 3000rpm - 7200rpm 3000rpm - 7000rpm 3000rpm - 7000rpm 3000rpm - 7000rpm
COOLING MEDIA Liquid Nitrogen Liquid Nitrogen Liquid Nitrogen Liquid Nitrogen
OPETATION MODE Touch Screen Touch Screen Touch Screen Touch Screen
FRAME SUS304 WITH SOME RED PAINT ON CERTAIN AREA
WHEEL DIAMETER AL φ250mm AL φ300mm AL φ350mm AL φ350mm
BLASTING SPEED 105.7m/s 123.3m/s 143.3m/s 143.3m/s

MACHINE INNER COMPONENT PICTURES
APPLICATIONS
A. Perfectly suited for O-rings and irregular rubber parts across various materials and sizes.
B. Ideal for micro electronic product parts, offering precision and care.
C. Exceptional for precision elastomeric parts, ensuring consistency and reliability.
D. Precisely tailored for precision injection moulding plastic parts, enhancing perfection.
E. Excellent for R & D part runs, facilitating innovation and testing.
F. Perfect for die casting products such as zinc aluminum and magnesium alloy, delivering meticulous results.
FEATURES
High Efficiency: Revolutionize your workflow as this cutting-edge machine replaces the labor of approximately 60-80 workers in flash removal.
High Precision: Achieve unparalleled precision by removing small and hardened flashes that handworkers can't, vastly improving product accuracy.
Low Cost: Benefit from significantly reduced costs compared to traditional handworker processes, maximizing your profit margins.
OUR WORKSHOP
PACKING
SHIPPING
