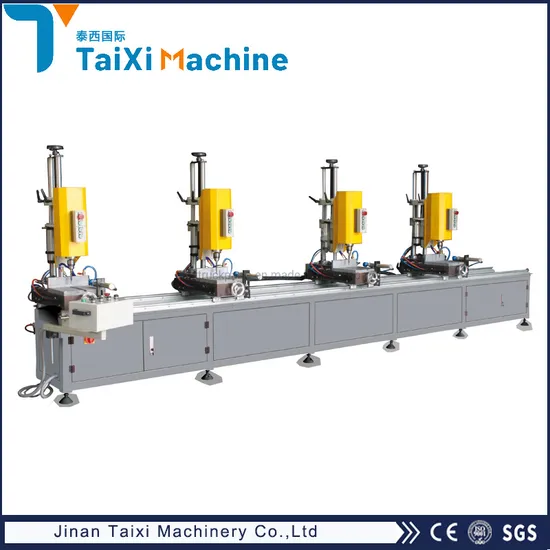

UPVC Aluminum Profile Window Four Head Automatic Screw Drilling and Fastening Machine

US$885.00-4,850.00 1 Set (MOQ)

Basic Info.

Model NO.
WMM
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
220V
Hydraulic Gearbox Motor Power
4*0.75kw
Rotary Speed
1400r/Min
Processing Range
300-5000mm(Length)
Drill Travel
125 mm
Width X Height
250X250mm
Diameter of Drill Hole
Max.13mm
Overall Dimension
5500mm*1100mm*1800mm
Weight
1000kg
Transport Package
Wooden Packing
Specification
5500*1100*1800mm
Trademark
Taixi
Origin
China
Production Capacity
3000sets/Year

Product Description

Auxiliary Machine


Pneumatic Punching Machine LY-16
Function:
Used for drilling holes for ALU and Curtain-wall profiles, and mounting holes for window and doors installation.
Features:
Max. processing section size 250x250mm, and Max. processing length 5000mm.
Meet multi-holes processing requirements.
Feeding system adopts hydro-pneumatic cylinder, ensured a smoothly feeding.
PLC control, each machine head can works individual and combination.
Parameter:
Power supply: 380v 50Hz
Hydraulic gearbox motor power 4X0.75Kw
Rotary speed 1400r/min
Processing range 300-5000mm(Length), 250X250mm(Width X Height), Drill Travel 125 mm
Diameter of drill hole: Max.13mm
Overall Dimension: 5500mm×1100mm×1800mm
Weight: 1000Kg

Aluminium Profile Bending Machine CNC LWYJ-60
Function:
Used for bending aluminum profile for making arch shape, such as C, U, S,O shape.
Features:
With CNC control system for easy bending different shape.
Using Hydraulic pressure power for heavy duty bending.
Parameter:
Power supply: 380v 50Hz
Air Pressure: 0.5-0.8 Mpa
Motor power: 6 kw
Bending Profile Maximum Width: 150mm
Bending Profile Maximum Thickness: 3mm
Bending Profile Minimum Radius: 230mm
Roller Positioning Precision: 0.01mm
Roller Diameter: 60mm
Machine Size: 1200mmx1100mmx1100mm
Weight: 1500kg


Was founded in January 2008. The company is headquartered in Jinan, a beautiful spring city, with convenient
transportation and superior geographical location. With a registered capital of 10 million yuan, the company has invested
in the construction of a 20000 square meter standardized factory building, which has passed the acceptance of the
national safety assessment and environmental assessment, and meets the requirements of the state for environmental
assessment, safety inspection and fire control. The company has 89 employees, including 21 employees with senior
technical titles, 10 invention patents and new use patents, 8 works reqistration, 21 various certifications and tests. It is a high-tech manufacturing enterprise integrating R& D, production, sales and service art tuyere
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral carton and wooden case. We also can pack the goods
according to your instruction including out package and kinds of labels.Q2. How about your delivery time?A: Generally, it will take 5 to 7 working days after receiving your advance payment. The specific
delivery time depends on the items and the quantity of your order.Q3.What is your terms of payment?A: Usually do T/T, L/C or Western Union,T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.Q4. Can you produce according to the samples?A: Yes, we can produce by your samples or technical drawings.Q5. Do you test all your goods before delivery?A: Yes, but you will be always welcome to our company to inspect the goods before delivery.
