5000kg-3 Chinses Brand European-Style Electric Chain Crane Hoist with Manual Trolley

US$600.00-6,000.00 2 Sets (MOQ)

Basic Info.

Model NO.
BMS05-3-4-02M
Application
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
Type
Chain Hoist
Sling Type
Chain
Lift Speed
2~8m/min
Chain Falls
2
Certification
ISO9001:2000
Condition
New
Color
Blue
Working Level
M5
Standard Lifting Height
4m
Control Voltage
24V
Control Method
Pendent Control or Remote Control
Feature
Portable, Light Weight, Waterproof
Shell
Aluminum Alloy
Core Components
Motor, Bearing, Gearbox
Usage
Lifting Materials
Transport Package
Wooden Case Packaging
Specification
125/250/500/1000/1600/2000/2500/3200/5000
Trademark
BRIMA
Origin
China
HS Code
84251100
Production Capacity
10000sets/Year

Product Description

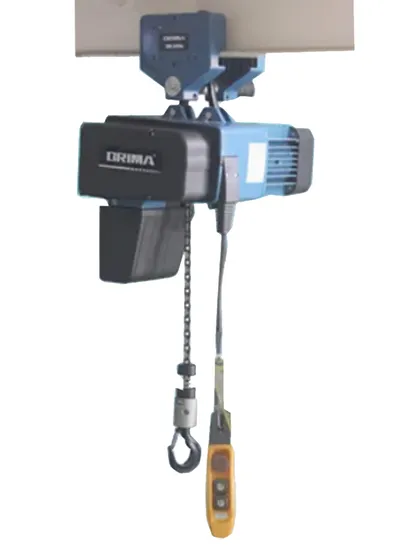

5000kg-3m/min European-Style Electric Chain Crane Hoist with Manual Trolley

Manual trolley electric chain hoist is a lifting equipment that combines the flexibility of a manual trolley with the high efficiency of an electric chain hoist.
Structural Composition
It is mainly composed of the following parts:
Electric chain hoist: It contains components such as a motor, sprocket, chain, and hook. The motor provides power to drive the sprocket to rotate, enabling the chain to perform retracting and releasing operations, thereby realizing the lifting and lowering of heavy objects. Manual trolley: Composed of wheels, frame, and operating handle. It can be manually pushed on the track to move the entire equipment in the horizontal direction and expand the operating range. Track: Usually made of section steel such as I-beam, providing a walking path for the manual trolley.
Working Principle The electric chain hoist is driven by electricity to perform lifting operations. The operator can control the forward and reverse rotation of the motor through control buttons to realize the ascent and descent of the hook. At the same time, the movement of the manual trolley on the track is used to adjust the lifting position.

Characteristics and Advantages

1. High efficiency and convenience: Electrically driven to lift heavy objects, with fast speed and high efficiency, saving manpower and time. At the same time, the design of the manual trolley is convenient for operation at different positions.
2. Flexible movement:
The manual trolley can move freely on the track, enabling the equipment to adapt to different work scenarios and improving work flexibility.
3. Safe and reliable:
Equipped with safety devices such as overload protection and limit protection to ensure the safe progress of lifting operations.
4. Simple operation:
The control button design is concise and clear, easy to operate, and even personnel without professional skills can quickly get started.
IV. Application Scenarios

Widely used in factory workshops, warehouses, construction sites and other places for equipment installation, cargo handling, construction material hoisting and other work.
For example, in a factory, large equipment can be conveniently moved from one workstation to another; in a warehouse, goods can be loaded and unloaded quickly to improve logistics efficiency.


Model Lifting Weight
(kg)
Lifting Speed Numbers Of Chain Working Lever
FEB/ISO
BMS0.125-8-4-01M 125 8m/min
2m/min
1 2m/5M
BMS0.125-16-4-01M 16m/min
4m/min
1 2m/5M
BMS0.25-8-4-01M 250 8m/min
2m/min
1 2m/5M
BMS0.25-12-4-01M 12m/min
3m/min
1 2m/5M
BMS0.25-16-4-01M 16m/min
4m/min
1 2m/5M
BMS0.5-8-4-01M 500 8m/min
2m/min
1 2m/5M
BMS0.5-12-4-01M 12m/min
3m/min
1 2m/5M
BMS0.5-16-4-01M 16m/min
4m/min
1 2m/5M
BMS0.5-24-4-01M 24m/min
6m/min
1 2m/5M
BMS0.5-4-4-02M 4m/min
1m/min
2 2m/5M
BMS01-6-4-01M 1000 6m/min
1.5m/min
1 2m/5M
BMS01-8-4-01M 8m/min
2m/min
1 2m/5M
BMS01-12-4-01M 12m/min
3m/min
1 2m/5M
BMS01-16-4-01M 16m/min
4m/min
1 2m/5M
BMS01-4-4-02M 4m/min
1m/min
2 2m/5M
BMS01.6-6-4-01M 1600 6m/min
1.5m/min
1 2m/5M
BMS02-6-4-01M 2000 6m/min
1.5m/min
1 2m/5M
BMS02-8-4-01M 8m/min
2m/min
1 2m/5M
BMS02-4-4-01M 4m/min
1m/min
2 2m/5M
BMS2.5-6-4-01M 2500 6m/min
1.5m/min
1 2m/5M
BMS2.5-8-4-01M 8m/min
2m/min
1 2m/5M
BMS2.5-4-4-01M 4m/min
1m/min
1 2m/5M
BMS3.2-3-4-02M 3200 3m/min
1m/min
2 2m/5M
BMS3.2-4-4-02M 4m/min
1m/min
2 2m/5M
BMS3.2-6-4-02M 6m/min
1.5m/min
2 2m/5M
BMS05-3-4-02M 5000 3m/min
1m/min
2 2m/5M
BMS05-4-4-02M 4m/min
1m/min
2 2m/5M
