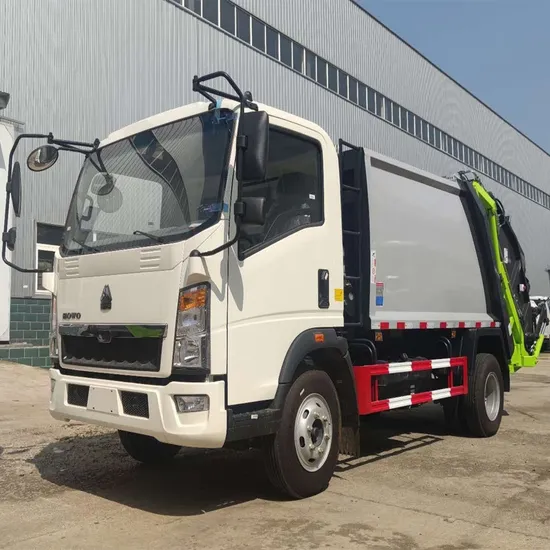

| Sinotruk HOWO 4x2 Garbage Compactor Truck | |
| Chassis Model | ZZ1068G3815D1 (Left/ Right Hand Driving Type Optional) |
| Engine | Model: YC4110, Euro 2, 116HP 4-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 4.6 L |
| Clutch | Single-plate dry diaphragm spring clutch,hydraulically operating with air assistance |
| Gearbox | Manual operation, WLY653, 6 forward and 1 reverse |
| Front Axles | 2700kg with drum brake system |
| Rear Axles | 7200kg, with drum brake system |
| Suspension | Leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer |
| Steering System | Hydraulic steering with power assistance |
| Braking System | Front drum rear drum brake, four-circuit protection valve Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms |
| Tires | 7.25R16, with one spare tyre |
| Fuel Tank Volume (L) | 120 |
| Dead Weight(kg) | 6500 |
| Gross Vehicle Weight (kg) | 11000 |
| Overall Dimension (LxWxH) (mm) | 7200x2400x3050 |
| Wheelbase (mm) | 3800 |
| Effective Mixing Voulume(m3) | 6 |
| Time of one filler cycle(s) | ≤60 |
| Time of discharge(s) | ≤90 |
