Capillary Tube Mat Energy Material for Radiant Air Conditioning System
Product Description

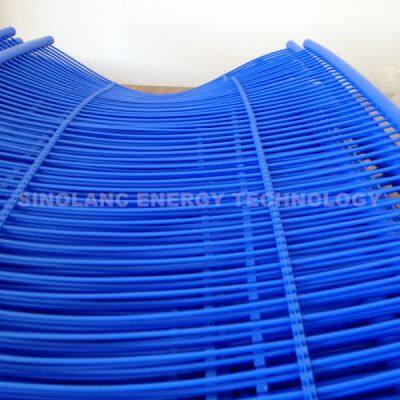

Capillary tube mat is consist of inlet,return water main tube and many capillary branch tubes. It is new energy-saving heating and cooling exchange system. Working principle of capillary tube mat is similar with the body’s blood circulation system. The water is flow in the capillary tube mat to achieved high efficiency of cooling and heating exchange. Supply the cooling and heating for the room. It is a kind of temperature control product of high efficiency, energy saving, environmental protection. Like this, it provide comfortable and healthy environment.
Capillary tube mat Details
Product
Heating Material Capillary Tube Mat
Material
PPR (imported from Finland)
Main tube size
20*2.0mm
Mat size
4.3*0.8mm
Capillary tube space
10mm, 20mm, 40mm
Length (L)
600~12000mm
Width (B)
1000mm
Weight
290~870 g/m2
Water content
0.16~0.57 L/ m2
Total weight
450~1440 g/m2
Connection method
On both sides of the hot melt welding and splice

Capillary Tube Mat Models
Capillary tube mat Featurs
Energy-efficient
Its water inlet temperature only 28~32℃ used for heating in the winter.
It is considerably belowfloor heating tube 45-60℃ and traditional radiator 70~80℃.
Comparing to common floor heating and radiator, the capillary tube mat can reach energy-saving 20~30% and 40%.
When it is used for cooling in the summer, its water inlet temperature require 16~18℃, much higher than the ordinary air conditioning unit 5-7℃.
The energy-saving effect is higher 60~70% than conventional air conditioning system.
Save space, Reduce the load
The thickness of capillary tube mat installation about 10mm, water filling weight about 750g/m2.
For example: a 20 floors of building with traditional central air conditioning, If use capillary tube mat.
Instead of traditional type will save two layers of space and produced great economic benefits.
Widely Energy Selection
Capillary tube mat can work together with air source heat pump, water source heat pump, ground source heat pump, solar energy, etc.
Heath and Comfortable
Capillary tube mat is achieved cooling and heating transfer by the way of planar radiation.
Due to its great heat exchange surface area, the air conditioning system thermal inertia of small, no noise, no wind, no need to wash, without the risk of bacterial growth and spread, radiation.etc.
Convenient Installation
The diameter of capillary tube mat is only 4.3mm. It can be hidden installed in wall, ground and ceiling. It doesn’t take up space in the room, convenient installation and has little influence on interior decoration.
Safe and Reliable
Each piece of capillary tube mat must be through the pressure test of 20 bar before delivery.
Quality is reliable and the service life for 50 years. It is through professional design and installation to ensure that the system operates stably, no maintenance costs.
Extensive Application
Capillary tube mat not only can be used as the air conditioning terminal product and also can be used as energy collection terminal.

Installation Suggestion
Project Case
