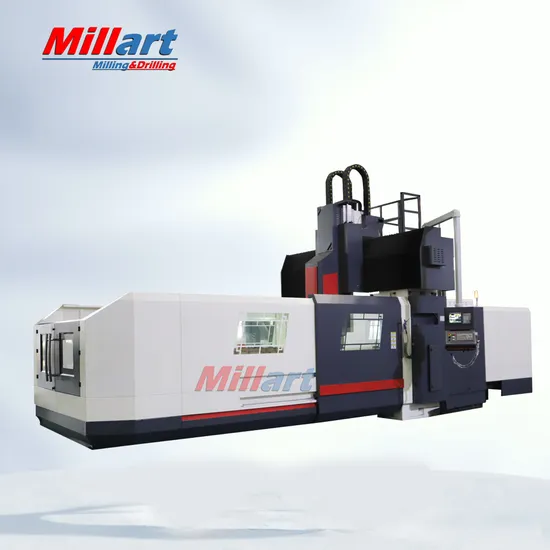

Heavy Duty CNC Double Column Machining Center Xh4022 Xh4025, CNC Granty Type Milling Machine

Product Description

Product description:
The machine tool has the characteristics of high precision, high efficiency, and environmental protection, which is especially suitable for multi-variety batch precision processing. Its performance indicators and accuracy indicators are fully in line with national standards. The products are modularized and can be serialized and customized according to market needs. Its good performance-price ratio is the best choice for domestic and foreign customers. The machine tool has the functions of drilling, boring, milling, expanding, reaming, rigid tapping, linear interpolation, arc interpolation, spiral interpolation, three-coordinate linkage, etc. Mainly carry out numerical control processing of various basic large parts, plate parts, disc parts, shell parts, molds and other precision parts. It is suitable for aerospace, shipbuilding, power generation, heavy machinery, locomotives, machine tools, textile machinery, printing machinery, mold manufacturing and other industries. The fixed beam type gantry frame structure is adopted, the bed is fixed, and the double columns are bolted to the two sides of the bed. The worktable moves on the X axis on the bed, the spindle box moves in the Z direction on the saddle, and the slide saddle and the spindle box move in the Y direction on the beam. The main large parts of the machine tool: bed, worktable, column, beam, saddle, and headstock are all made of high-strength cast iron and resin sand. These large parts are optimized by three-dimensional computer software. The layout of the ribs is reasonable and has perfect The heat treatment process is used to eliminate residual stress and ensure that the whole machine has sufficient strength, rigidity and high stability.

Technical parameter :

Item	Unit	XH4022	XH4025
X axis travel	mm	4000	4000
Y axis travel	mm	2200	2700
Z axis travel	mm	1000	1000
Spindle nose to worktable	mm	280-1280	280-1280
Distance between two column	mm	2300	2700
Leadscrew diameter	mm	80/63/50	80/63/50
Linear guideway width	mm	55/55/Rectangle	55/55/Rectangle
Worktable Length	mm	4000	4000
Worktable width	mm	2000	2300
T slot qty-width*distance	mm	9-28*200	11-28*200
Max loading capacity	Ton	12	12
Spindle speed	rpm	6000/belt	6000/belt
Spindle motor power	kw	22	22
Fast moving speed	m/min	12/12/10	12/12/10
Cutting speed	mm/min	1-8000	1-8000
Spindle taper		BT50	BT50
Feed motor power	kw	8/6/5	8/6/5
X/Y/Z axsis motor torque	Nm	50/40/30	50/40/30
Tool Magazine Capacity	pcs	Disc/24	Disc/24
Positioning accuracy	mm	0.020/0.020/0.018	0.020/0.020/0.018
Repeat accuracy	mm	0.012/0.012/0.012	0.012/0.012/0.012
Length	mm	10200	10200
Width	mm	5000	5500
Height	mm	5300	5300
Weight	kg	350000	360000

Standard Accessories:

Mitsubishi M80B controller

Spindle speed 6000rpm belt type

24 tools disc type

Screw type chip conveyor & chip bucket *2

Chain type chip conveyor & chip bucket *1

Nitrogen balance cylinder

Air conditioner in cabinet

Air gun+Water gun

Automatic lubricating system

2-Axis linear guideway from Taiwan Hiwin

Ball leadscrew from Taiwan Hiwin

Levelling pad,nut and bolts

Tools and tool box

Optional Accessories:

Spindle oil cooler

CTS 20bar

CTS 30bar

Reneshaw tool probe TS27R

Reneshaw workpiece measurement device OMP60

ZF gearbox

Gear head

Manual angle head

Auto angle head

Chain type ATC 32 tools

Chain type ATC 40 tools

HEIDENHAIN scales/1m

4TH Axis rotary table 255mm+tail stock+hydraulic station

5TH Axis rotary table 255mm+hydraulic station

Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.
