Vacuum Tube Triodes in Oscillators (CTK15-2, CTK12-4, CTK12-1)

Product Description

CTK15-2, it is coaxial structure metal ceramic triode. Directly heated thorium tungsten cathode. The stem is cooled by forced air and the anode is cooled by water. Max work frequency 120MHz. Max anode dissipation power 20kW. Max anode voltage 13kV. Max output power 45kW. the tube is mainly used in RF oscillator and amplifier and CO2 laser cutting machines. Electrical Characteristics

Filament Voltage	7.2V
Filament Current	180A
Amplification Factor	200
Transconductance	60mA/V
Interelectrode Capacitances
Grid-Cathode	67pF
Grid-Anode	27pF
Cathode-Anode	0.25pF
Weight	4kg
Max Height	290mm
Max Diameter	¢155mm
Max temperature	220ºC
Operating position	Vertical or Anode down
Cooling	Water and air
Air flow	≥2m³/min
Water flow	≥20L/min
Outlet water temperature	<=60ºC
Inlet water pressure	<=5 bar

Limit Working Conditions:

Frequency	120MHz
Anode Voltage	13kV
Grid Voltage	-1500V
Anode Current	8A
Peak cathode Current	40A
Anode Dissipation	20kW
Grid Dissipation	800W
Anode Output Power	45kW

Typical Operation:

Frequency	30MHz
Anode voltage	11kV
Grid voltage	-235V
Grid current	1.9A
Anode current	5.4A
Grid Dissipation	570W
Grid drive Power	1000W
Anode Output Power	45kW

Dimension(mm)

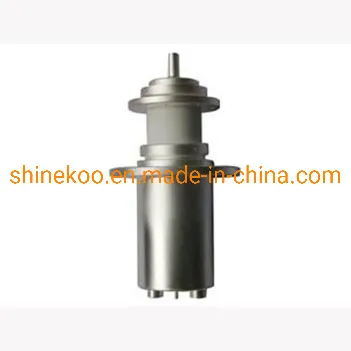

Product Picture
Product Description CTK15-2 is a metal ceramic power triode tube for laser machine designed specifically for industrial applications. This tube uses a coaxial design and metal-ceramic technology. This tube may be operated in CW or pulse modes.
For operation in pulse mode, the parameters depend on each equipment characteristics.
We manufacture the following all models.
FC-10FA, FC-10FT, FC-732F, FC-735F, FC-735FT, FC305F, FC311, FC312F, FC620F, FC620FT,FD911S, FD003Z, FD-5S.
FC10FT, FC201F, FC307F, FC307FS, FC308C, FC310C, FC310F, FC502F, FC732F, FC734F, FC735F.
FU-33, FU-833A, 833A, 833C, FU-74F/RY-74B, FU-100F, FU-728F, FU-113F, FU-113FG, FU-998F, FU-5S, FU-62S, FU-610F, FU-610FA, FU-610S, FU-724F, FU-724S, FU-727F, FU-824F, FU-824FA, FU-832F, FU-834F, FU-834FA, FU-836F, FU-924F,FU-924FA,FU-928F,FU-101F,FU-101M,FU-101Z,FU-101C,FU-832C,FU-832FA, FU-832F,FU-832M, FU-917F,FU-917M, FU-307S, FU-74F, FU-250F, FU-252F, FU-946F, FU-947F FU611F, FU612F, FU613F, FU001F, FU104C, FU104Z, FU115F, FU116F, FU252F, FU615F, FU616C, FU617F, FU618F, FU720F, FU820C,FU820F, FU002F, FU617FT, FU-84F, FU-74F, FU-1608C, FU-1608F.
GU84B, GU74B, GU78B.
FM70FT,ML8533, ML8536,YU191B, YU191C, YU-148, YU-108,, YU-148, YU-191B,YL1050, YL1057, YL1631, YL1420,YD1202, YD1212.
BW1184J2F, BW1185J2F, BW1184J, BW1185J, BW1184J2, BW1185J2, BW1608J2F, BW1608J.CQK25-2,CQK50-2.
3CX4500H3,3CX6000A7,3CX2500H3,3CX2500A3,3CX2500F3,3CX3000A7,3CX3000F7,3CX1500D3,3CX10000D3,3CX10000A3,3CX10000A7,3CX10000H3,3CX15000A3,3CX15000A7,3CX15000H3,3CX20000H3,3CX20000A7,3CX800A7,3CPX800A7,3CX1500A7,3CPX1500A7,3CX5000A7,3CPX5000A7,YU-158.
YC-156,YC-156A,YC-179,YC-236,YC-257.
3CW5000F1,3CW5000F3,3CW40000H3,3CW45000H3,3CW20000A7,3CW20000H3,
3CW20000H7,3CW30000H3,3CW30000A7,3CW30000H7.
3CX2500A3,3CX2500F3,3CX2500H3,3CX3000A7, 3CX1500A7, 3CW20000A7.
4CX250B, 4CX250R, 4CX250FG, 4CX800A/RY-74B, 4CX800A, 4CX350A, 4CX350F, 4CX1000A,4CX1500B,4CX3500A,4CW1000A,4CX1500A,4CX3000A,4CX5000A,4CX5000R,4CX7500A,4CX10000D,4CX10000J,4CX15000A,4CX20000C,4CX20000D,4CX20000E,4CV100000C, 4CX250K, 4CX1500A, 4CX3000A, 4CX3500A, 4CX15000A, 4CV100000C, 4CX35000C, 4CX5000A,5CX1500A.
CTK12-4, CTK12-1, CTK15-2, CTK25-4, CTK35-2, ITK12-1, ITK3-1, ITK5-1, ITK15-2, ITK30-2, ITK60-2, ITK70-2, ITK90-1, ITL2-1, ITL3-1, ITL5-1, ITL9-1, ITL12-1, ITL15-2.
TH5-6, TH6-3A, TH382, TH382, TH584, TH338, TH331, TH537, TH527, TH327, TH582, TH558, TH610, TH375, TH576, TH373, TH328, TH347.
E3061, E3062, E3062E, E3069, E3130.
RS3060CL, RS3060CJ, RS3021CJ, RS3026CJ, RS3040CJ, RS3041CJ, RS3041CJ, RS3040CJ, RS3060CJC, RS3021, RS2048CJ, RS2048CJC, RS1034SK, RS1034SL, RS1072C, RS2054SK.
8560AS, 928F,836F, 8741, 7T85, 7T69, 8F75R, 7F71RA, 8F68R.
6T51, 6T58RA, 7T62R, 7T62RE, 7T85RB, FU-947F, 7T69RB, 7T84RB, 7T69RB, 8T25RA, 8T85B, 8T85RB, 8T87RB, 8F76R, 8T69JB.
SK300 Socket, SK1300 Socket, SK2210 Socket, SK184 Socket. Certifications
Packaging & Shipping
FAQ

---
