Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Name
Slant Bed CNC Turning Lathe
Max.Processing Length
300mm
Tool Post Type
Gang Tools CNC Lathe
Spindle Motor
5.5kw Servo Motor
Slant Bed
45 Degree Slant Bed CNC Lathe
Guideway
Taiwan Linear Guideway
Transport Package
Wooden Case
Specification
500mm diameter seal
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
200.00cm * 200.00cm * 200.00cm
Package Gross Weight
1500.000kg
Product Description

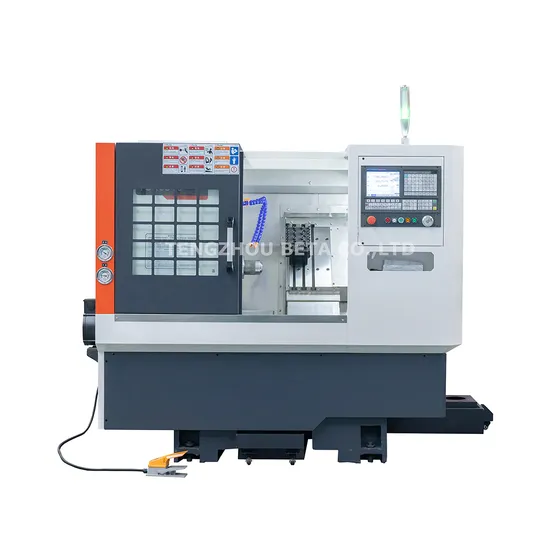

TCK400 Cheap slant bed precision metal turning cnc lathe machine (Linear guideway, Without tailstock)
Standard accessories:
45 degree slant bed structure,
GSK CNC controller,
Spindle motor 5.5kw servo,
Taiwan linear guide ways,
A2-5 spindle unit 140 with maximum speed 3500rpm,
6" hollow type hydraulic collet with cylinder,
Gang type tools 4 pieces,
automatic lubrication system,
automatic cooling system,
work light
Full protection cover
Optional accessories:
Siemens/Fanuc CNC controller
Hydraulic turret
Servo Turret
Electric turret
| Model | Unit | TCK6340S / TCK400 |
| Swing over bed | mm | 400 |
| Swing over cross slide | mm | 140 |
| Max processing length | mm | 300 |
| X axis travel | mm | 400 |
| Z axis travel | mm | 500 |
| Spindle nose | | A2-5 |
| Spindle bore | mm | 56 |
| Bar capacity | mm | 45 |
| Max spindle speed | rpm | 3500 |
| Spindle motor | kw | 5.5 servo |
| X/Z axis repeatability | mm | 0.005 |
| X/Z axis feed motor torque | N.m | 6/6 |
| X/Z rapid traverse | mm/min | 18/15 |
| Tool post type | | Gang type tools |
| Cutting tool shape size | mm | 20*20 |
| Guide way type | | 45 degree slant bed |
| Total power capacity | kVA | 9/11 |
| Overall dimension | mm | 2390*1530*1780 |
| Weight | kg | 2600/2800 |
The inclined bed CNC lathe is a high-precision and high-efficiency automated CNC machine. Equipped with a multi-station turret or power turret, the machine tool has a wide range of process performance, capable of processing complex workpieces such as linear cylinders, oblique cylinders, arcs, and various threads, grooves, worms, etc. It has various compensation functions such as linear interpolation and arc interpolation, and has played a good economic effect in the mass production of complex parts.
>>
