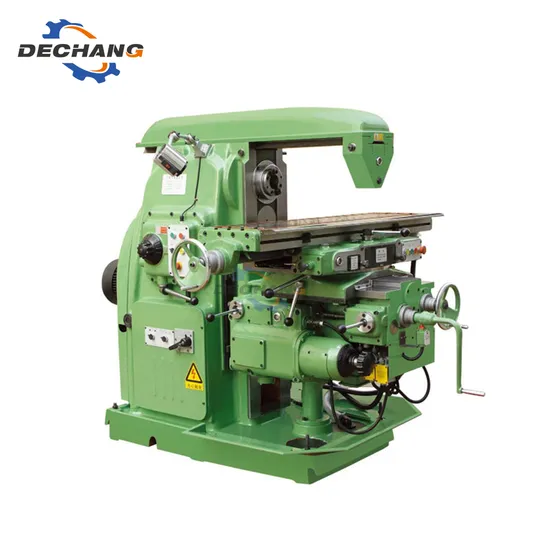

X6140 1700X400 Table Size Universal Horizontal Milling Machine

Product Description

X6140 1700x400 table size Universal Horizontal Milling Machine
Product Parameters
The main performance characteristics:
1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operation
Application:
1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. 3. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Product main technical specifications:

Specifications	Units	X6140
Table size	mm	1700×400
Table load	kg	800
T slot(number-width-pitch)	mm	3-18-90
Table travel	mm	900/880 315/300 350/330
Range of table feed	mm /min	XY:23.5-1180 Z:8-394
Rapid speed of table	mm /min	XY:2300 Z:770
Spindle taper		ISO50 7:24
Spindle speed range	rpm	30-1500 (18 steps)
Swivel angle of table	°	±45
Distance between spindle axis and table surface	mm	30-380
Spindle motor power	kw	11
Feed motor power	kw	1.5
Weight	kg	3950/4200
Overall dimension	mm	2560×2160×2100

Detailed Photos


Company Profile
What We Do?
Our main products are :

CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Milling machines,,Drilling machine, Sawing machine, Grinding machine and other metal-working machines and accessories.
Our Machines Application Fields:
1.Aviation industry: 5-axis machining centers, horizontal and gantry machining centers, precision CNC lathes, etc. can be used to process parts such as aircraft wings, fuselages, empennages and engines
2.Railway locomotive manufacturing industry: CNC lathes, vertical and horizontal machining centers, and five-axis machining centers can process high-speed rail locomotive bodies, axles, wheels and other parts
3.Mold manufacturing: high-speed CNC milling machine, high-precision CNC machining center, precision grinding machine can process automotive panel molds, die-casting molds, forming extrusion molds, etc.
4.Power equipment manufacturing industry: For power generation equipment, heavy CNC gantry milling machines, large floor milling machines, large CNC lathes,
In addition, our machine tool products can also be used in weapon manufacturing, electronic information equipment manufacturing, metallurgical equipment manufacturing.
WHY CHOOSE US?
QUALITY COMMITMENT

Company is committed to bring efficient, high precision and stability to all users by insisting on providing our customers with high quality machines.Company machines passed ISO, CE Certificates.
SERVICE SUPPORT

The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
Company also provide provide online technical support, voice and video guidance.
Our Facotry
MANUFACTURER CAPABILITY
The company has purchased high-precision and high-efficiency advanced equipment from well-known domestic and foreign brands, and the company's machining and production technology level has been continuously improved, resulting in a continuous increase in production capacity. Company provide first-class machines to to meet the needs of domestic and foreign customers.
R&D CENTER
Company collected first-rate professionals in domestic machine tool trade and established long-term technical cooperative relations with other famous machine manufactures. Meanwhile, companmy pays more attention to introducing advanced foreign technology, and makes great efforts to achieve technical renovation and develop market oriented highly sophisticated products.
Company provide comprehensive cnc machines and manual machines to global customers.
Whether you are an end user, a dealer, or a machining factory, you can send your technical requirements, specifications, drawings, and we will provide the most and we will provide the most suitable machine or a comprehensive processing line solution.

After Sales Service
SERVICE SUPPORT
From the moment you become part of the DECHANG, we are fully dedicated to guiding you, answering your questions and supporting your business. You can rest assured that with DECHANG, you always have a trusted partner to guide you every step of the way. See how our Technical Support services can answer your questions and help you solve your most pressing issues.

1.Warranty
The warranty period is general 13 months after B/L date. During the warranty period, if the parts are damaged because of itself quality problems,except human factors and improper operation, we will provide free replacement parts. Meanwhile, the machine should be under normal operation according to Operation Manual.
2.Quick Response
Our top-notch, expert technical support specialists are there for you seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.
3.Online Technical Support
On the Whatsapp or Wechat, our technician and sales will deliver solution by taking video and words instructions.
4.Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the salesperson to obtain the cost
FAQ
1: Where is your company A: Our company is located in Tengzhou City, Shandong Province.2: What about your warranty?A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free3: How do you offer after-sale service?A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems4. What is your standard package? A: Our package is export standard plywood case with pallet.5: What's the Payment Terms? A: T/T, 30% initial payment when order, 70% balance payment before shipment; 6: What's the MOQ? A: 1 set.

---
