High Precision 3/4/5axis Bbt30 Spindle CNC Mill Turn Machine for Hard Metals and Alloys

Product Description

Hot Sale Alert: Unleash the Ultimate in Precision and Power with Our High-Efficiency Vertical CNC Milling Machine
Product Description
Product Parameters

Model		TZ-640B
Worktable size L*W	(mm)	700x400
Work table Max. loading	kg	300
T-slots size (N×W×D)	mm	3x14x125
X/Y/Z axis travel	mm	600/400/300
X/Y/Z axis feed speed	m/min	48/48/48
X/Y/Z axis motor	kw	1.5/1.5/3 kw
X/Y/Z axis linear Guide	mm	30/30/30
Spindle taper		BBT30
Max. spindle speed	rpm	20000
Spindle motor power	kw	5.5
Distance from spindle nose to workbench	mm	150-450
A.T.C capacity	pcs	21
Positioning accuracy (X/Y/Z)	mm	±0.005/300
Re-positioning accuracy(X/Y/Z)	mm	±0.003/300
Machine weight	kg	3600
Machine size (L*W*H)	mm	1850*2300*2250

Main Parts of Equipment
(1) Base Our robust large-span heavy base is meticulously crafted to surpass industry standards by an impressive 20% in guide rail specifications. This exceptional design ensures optimal dispersion of gravitational forces, significantly enhancing our CNC Milling Machine's processing capacity and ensuring rock-solid stability under even the heaviest workloads. The thoughtfully designed short saddle overhang elevates dynamic accuracy, while the strategically placed rear Y-axis motor reduces operator reach distance, making it ideal for effortlessly managing workpieces and boosting overall processing efficiency.
(2) Uprights (a) Our groundbreaking herringbone column design stands out by offering unparalleled stability and streamlined maintenance, outperforming traditional single-column structures. (b) The advanced herringbone structure bed design, equipped with sophisticated gold protection and highly efficient chip removal systems, effectively curtails sheet metal water leakage during installation, thereby fortifying the machine's mechanical integrity. (c) By employing high-strength screws, we substantially bolster the column's rigidity, minimizing vibrations during operations and ensuring unrivaled stability even amidst heavy-duty cutting tasks. (d) Thickening the shaft's slint-bone structure dramatically enhances bed rigidity, yielding superior processing stability and extending the service life of the machine tool.
(3) Headstock
Our meticulously optimized contact ratio between the headstock and column, paired with a short nose-end Taiwan spindle, empowers our machine with extraordinary chip cutting prowess. This remarkable tool is engineered to impeccably perform drilling, milling, tapping, boring, and other intricate processes with unmatched precision.
(4) Precision spindle with high precision, high performance, and high stability (a) Crafted with precision in Taiwan, our spindle set boasts a meticulously engineered main shaft grab tool mechanism. The innovative use of a butterfly spring on the main shaft applies tension to the tool handle's pull nail via a four-jaw broach mechanism, ensuring a perfect match with the main shaft's taper hole for flawless grab tool operations. (b) The low inertia spindle motor is crafted for peak performance, offering rapid acceleration times that enhance tapping speed and quality. Equipped with a spindle orientation function, the spindle's direct drive ensures exceptional performance.
(5) Machine tool protection
The lathe bed guide rail (XY axis) is constructed from durable stainless steel telescopic sheet metal, while the column guide rail (Z axis) benefits from cutting-edge organ type and armor type protection. Its fully enclosed design effectively prevents iron filings and coolant from escaping, guaranteeing a secure and comfortable work environment for operators.
(6) Power distribution Beyond mechanical prowess, Taijing machine tools prioritize superior electrical design. Our CNC system is equipped with an innovative optical fiber communication mode that significantly accelerates data communication speed and simplifies wiring complexity, resulting in a meticulously organized electrical cabinet.

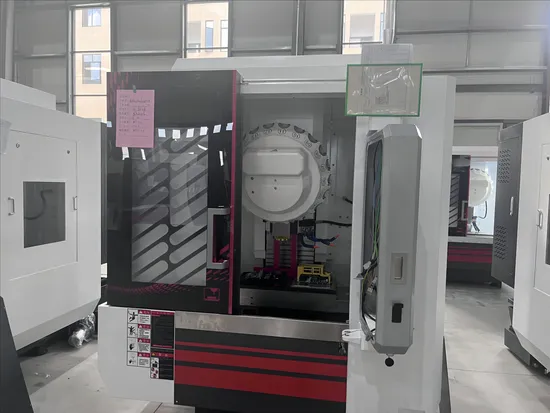

Picture of the machine

Main Parts		Branch/ Origin
CNC System		M80B Mitsubishi/ Japan
Spindle and three-axis servo motor		Mitsubishi/ Japan
Spindle		Dejiu TAIZ/ Taiwan
Ball screw		Yintai or Shangyin/ Taiwan (C3)
Screw bearing		P4NSK/ Japan
Rail		Yintai or Shangyin/ Taiwan (P)
A.T.C capacity		TAIZ or Deda/ Taiwan
Body casting		High density and high strength resin sand cast iron
Coupling		R+W\NBK / German
Electrical components		Franch
Handwheel pulse		East Test/Internal Security Control / Janpan
Pneumatic components		Taiwan AirTAC/ Japan SMC

Anoher Advantages
• Immerse yourself in a production environment unlike any other with our sophisticated machine, meticulously crafted to deliver optimal processing conditions. Experience a seamless blend of efficiency and superior output quality that elevates your production capabilities to unprecedented levels.
Our cutting-edge imported machinery, boasting state-of-the-art horizontal and vertical machining centers, CNC boring machines equipped with rotating tables, and high-precision gantry guideway grinding machines, is engineered to deliver unparalleled workpiece accuracy. This technological prowess not only elevates assembly precision but also ensures the longevity of accuracy, reinforcing our esteemed position as leaders in the industry.
• Pioneering Detection Techniques
We utilize the latest laser technology for thorough testing and precise calibration of positioning accuracy. By adhering strictly to the renowned German VDI3411 inspection standards, encompassing five exhaustive tests, we assure precision that stands unmatched in the market.
Prior to delivery, each machine tool undergoes extensive processing evaluations to ensure they consistently exceed real-world processing accuracy demands, delivering performance that not only meets but exceeds all industry expectations.
Product sample
• This state-of-the-art CNC machining center is a marvel of engineering excellence, meticulously crafted to blend milling, drilling, and tapping functionalities into a seamless operation. Boasting unparalleled versatility, it ensures flawless and efficient execution across a multitude of tasks, elevating your operational capabilities.
• Expertly designed for CNC machining across an extensive range of metal profiles, including aluminum, steel, copper, and even non-metal materials, this exceptional machine dramatically enhances your production capabilities. It propels efficiency and fosters innovation, making it an indispensable asset for any manufacturing process.
• Ideally suited for a diverse array of flourishing industries such as 3C electronics, rail transportation, aerospace, and linear module guide rails, this machine opens up new vistas in innovation by consistently delivering precision, reliability, and exceptional performance. It is your key to unlocking limitless potential.
Packaging & Shipping
•Uncompromised Protection: Our expertly crafted packaging solutions ensure that your High-Performance CNC Machine for Milling Hard Metals and Alloys, with its BBT30 Taper, is delivered to you in perfect, pristine condition. We make it our highest priority to protect your valuable investment, guaranteeing it arrives completely unblemished and ready for action.
•Robust Structural Stability: Our packaging is meticulously engineered to meet the rigorous demands of transportation, offering unparalleled stability. This thoughtful design preserves the structural integrity of your CNC machine, keeping it safe and secure during its entire journey, right to your doorstep.
•Eco-Friendly and Fully Recyclable: With a deep-rooted commitment to sustainability, our packaging materials are designed to be both eco-friendly and entirely recyclable. This ensures an impressively low environmental footprint, while still providing the highest level of protection, blending ecological responsibility with outstanding performance.
Professional Team
FAQ
1. What are the Payment Terms?
A: T/T, 40% initial payment when ordering, with the remaining 60% balance payable before shipment.
2. What are your trade terms?
A: We accept FOB, CFR, and CIF trade terms.
3. When is the delivery time?
A: For standard machines, we can prepare the machine within 30 days. Special machines may require more time. Please place your order based on our delivery timeline.
4. What is your minimum order quantity and warranty?
A: Our MOQ is one set, and we offer a one-year warranty.
5. How are the machines packaged?
A: The machines are securely packed in standard wooden cases.
6. How can I choose the most suitable machines?
A: Provide us with your specifications, and we will recommend the best model for you. Alternatively, you can select the exact model yourself.
You can also send us your product drawings, and we will select the most suitable machines for your needs.

---
