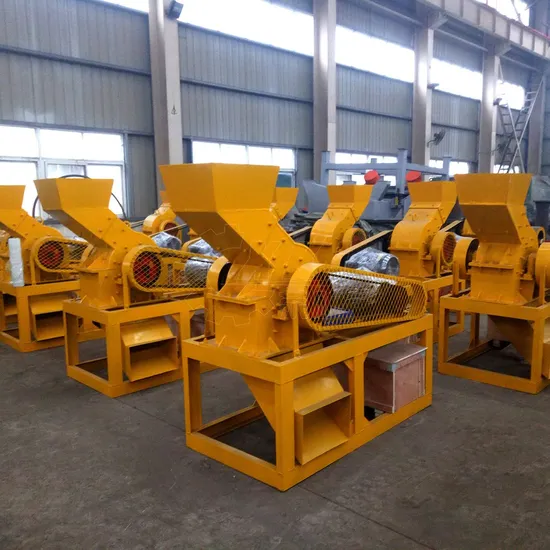

PC 400*600 Rock Gold Hammer Crusher for Sale

US$2,500.00 1 Piece (MOQ)

Basic Info.

Cutter Material
High-Speed Steel
Drive
Electric
Object
Coal, Metal, Plastic, Wood
Type
Hammer Crusher
MOQ
1 Set
After-Sales Service Provided
Engineers
Raw Material
Stones Rocks Ores
Features
High Processing Capacity
Service
on-Site Support
Price
Negotiatable
Spare Parts Supply
Anytime
Quality
Advanced Technology
Motor
Chinese Famous Brand
Product Type
Aggregate Crushing Equipment
Transport Package
Wooden
Specification
812*982*785
Trademark
XKJ
Origin
Henan
Production Capacity
8 T/H

Packaging & Delivery

Package Size
1850.00cm * 1082.00cm * 2500.00cm
Package Gross Weight
2000.000kg

Product Description

What is Hammer Crusher?
A Hammer crusher (hammer mill machine) is a kind of equipment for crushing materials into smaller pieces by the repeated blows of little hammers. It is suitable for crushing the material with medium hardness and brittleness, the compressive strength is no more than 150 mpa and humidity is no more than 15%, widely used in cement plant, chemical industry, electric power industry, etc. The PFC impact hammer crusher, TPCD single-stage hammer crusher, and the PC hammer crusher are the main models produced by our company. They all have a large crushing ratio, simple structure, and high production efficiency

Hammer Crusher Maintenance
Sufficient lubrication will prolong the service life of the hammer crusher. Operators should add lubricating oil to the bearing and other wearing parts and change the oil every three months. A mobile inspection and routine maintenance are necessary. The operator should often check the bearing to make sure that the temperature does not exceed 70ÂșC and check whether the bolt is loose and the lubrication system is working properly.
Product Features
Wear-resisting hammer head
The hammer head of the hammer crusher is the main vulnerable parts. In view of this shortage, our hammer head adopts high-quality high manganese steel, and after strict heat treatment, a single austenite structure, service life than the ordinary manganese steel is more than five times higher, the efficiency of more than 30%. High crushing ratio
High crushing ratio, crush large piece into small uniform product, good cubic shape. In some cases, hammer crushers are used as primary crusher. Flexibility
With the compact structure, hammer crushers no need a wide working spaces, easy to install and maintain. We also provide stationary, mobile and portable models versions (wheeled portable and track-mounted), flexible in any applications.
Hammer Crusher Working Principle
In the working process of the hammer crusher, the motor drives rotor to rotate at a high speed. When materials are evenly fed into the machine cavity, the high-speed rotating hammer head will continuously impact the material until they are broken into small pieces. After that, the gravity of materials themselves makes them hit against the impact plate and fall on the sieve plate at the bottom of the machine. Materials larger than the size of the sieve hole will remain in the cavity and continue to be broken until reach the crushing size and then be discharged from the bottom.
