Basic Info.
Model NO.
HFT538 tile making machine
Transmission Method
Hydraulic Pressure
Name
Roof & Floor Tile Making Machine
Raw Materials
Cement, Sand, Stone, Pigment etc.
Vibrating Frequency
2800-4500 Rolls/Minute
Machine Lifetime
More Than 10 Years
Transport Package
Suitable for Sea and Land Transport
Specification
3000*1900*2400mm
Production Capacity
According to Your Requirements
Product Description

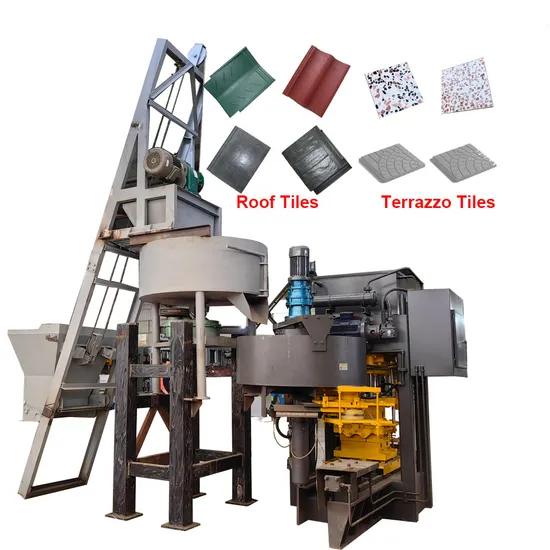

Automatic Concrete Roof Floor Terrazzo Tile Making Machine Cement Paver Block Brick Tile Production Line
Hongfa Group since 1990, more than 34 years experience! Updated to State-owned Enterprise!
All our macines are passed the IS09001-2000 international quality system identification,and get CE certification.
We will test our machine 3-4 times before shipping, to insure the quality!
Welcome to cooperate with us! Best quality, best service for you!
Product Description
Brief Introduction of HFT538 Tile Making Machine:
1)HFT538 Type Color Forming Machine adopts PLC controlling system,full-hydraulic press and pneumatic to shape. Shaping quickly and dependable parameter,high productivity, high quality and competitive price.
2)Adopts pressing and filtrating concrete to shape.Having various kinds of finished product types and beauty in structure, high density and strength,precision size,can satisfy all requirements of the construction.
3)It serves several purposes and produces all kinds of main tile,ridge tile,cornice tile,slot tile and so on through changing molds.
Control System:
PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn't need a professional person but only need a simple trained one to the operator.
The Technical Parameter of Our HFT538 Roof & Floor Tile Making Machine:
HF538 Color Tile Machine Technical Parameter
|
Productivity
| 6-8 pcs/min, 3500 pcs per shift/8hours
|
Building Area
| 150 m2
|
Care Area
| 60 m2 (600m2 if no the shelfs)
|
Tile specification
| 424 X 337 mm
|
Tile machine Power
| 13.75kw
|
Molding pressure
| 1200KN
|
Total power of the line
| 18kw
|
Working voltage
| 380v or as clients request
|
Tile Machine weight
| 5000 KG
|
Mold lifetime
| 800-900 thousand times
|
Tile machine outsize
| 3100*1600*2600 mm
|
Employee
| 4-5 people
|
Raw Materials
| cement, sand, stone powder, fly ash, construction waste,slag
|
Max pressure
| 150ton
|
Max processing
| 500*500*150 mm
|
HFT538 Tile production line advantages:
1.The molding speed is fast and the performance is reliable. It can reach 6-8 pieces per minute.
2.This Machine adopt PCL automatic control, full hydraulic and pneumatic forming, with high yield and excellent cost performance. 3.The mortar concrete is molded by pressure filtration, and the product has beautiful outlook, high density, high strenth and accurate size, which can meet the needs of various buildings.
4.Multi-purpose machine, the machine can produce all kinds of main tiles, ridge tiles, crevice tiles, water trench tiles, etc. by changing the mold.
HFT538 Color Tile Making Machine Main Specification and Theoretical Productivity
Item
| Tile size(mm)
| Molding cycle
| Pcs/mould
| pcs/hour
| pcs/8hours
| Power(kw)
|
Color tile
| 424*337
| 7-10 s
| 1
| 360-480pcs
| 2880-3880pcs
| 18
|
How to make color tiles by Hongfa machine?
Sand, cement, water---Mixer---Dosing machine---Spray release agent---Tile forming machine---Tile shelf---De-mould---Tile Yard---Maintenance
The raw materials:
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite and other industrial wastes.
Detailed Photos
Finished Product
The same machine can produce tuff tiles , terrazzo tiles, flooring tiles by change molds
terrazzo tiles making machine , precast concrete block making machine, cement brick making machine, tile production line
1. Roof Tiles: ridge tile, comice tile, slot tile, edge tiles, ditch tiles, floor tiles and paver bricks and so on through changing different molds.
2.Terrazzo Floor Tiles:
• Swimming Pool, Courtyard, Civil Architecture• Square,Sidewalk,• Hospital,Kitchen,Washroom,School, Public Institution, Office Building Terrazzo Tiles are Widely Application.
Packaging & Shipping
Packaging: Naked packing or stretch film packing or according to customers' requirements
Delivery Time:Within 30 days after receipt of deposit and moulds confirmation from buyer
Company Profile
Hongfa Group Established in 1990, more than 34 years experience.
A leader developer& Manufacturer of Construction Material Machinery.
Guangxi production base: 9 machinery factories.Updated to state-owned enterprise.Hongfa consists of 2 production bases, 4 production factories, 2 import export companies, 1 provincial construction and building materials machinery institute, 1 new construction material company, and established sales companies in Vietnam and Indonesia.
Main business Range & Products:
Lightweight Panel Production Line, AAC Block Production Line, Full Automatic Concrete Block Production Line, Artificial Quartz Plate Production Line, Concrete Pipe Machine, Concrete Tile Machine, Concrete pipe machine, Bidirectional Hydraulic Brick Maker, Mining Machinery, Concrete Batching plant, Stereo Parking Equipment, etc.
Hongfa Strengths:
1)More than 30 years experience. 1500 employee (50+engineers)
2) Total 4 factories with 440,000M2 and annual sell above USD100 Million .
3) 10,000 customers and fulfillment to over 120 countries.
4) Continuous service and logistics system.
5) High quality products and competitive price.We hope we can cooperate with each other and establish a win-win business relationship.
Please not hesitate to contact us if you are interested in any kinds of products.
Contact Information:Foreign Trade Dept. :Poppy Jiang (+86 18031925793)Guangxi Hongfa Heavy Machinery Co.,Ltd.Factory add: Linyi city, Shandong province & Nanning city, Guangxi Province, China
>>
