CNC Machining Center for Aluminum Profile Processing Round Holes/Keyhole etc. on Aluminum Window Door and Curtain Wall Industry Milling

Product Description

Jinan SETH Intelligent Equipment co.ltd. Product Description

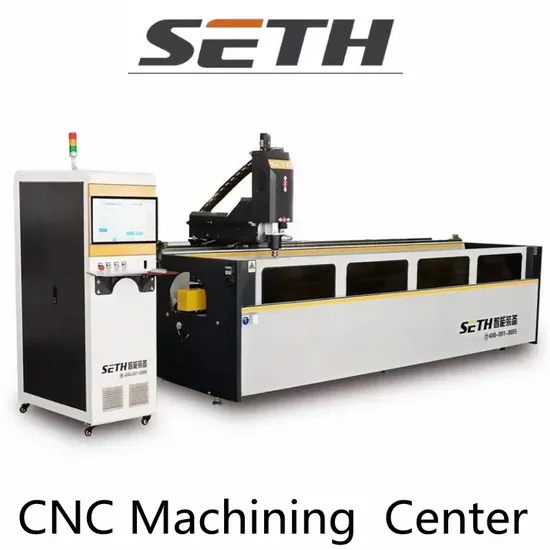

CNC machining center for aluminum profile
Features: Uses for processing round holes, slots, keyhole etc on aluminum profile,
window-door and curtain wall industry, it is also suitable for processing
milling, chamfering and other procedure.
This machine is a CNC machining center for heavy aluminum profiles,
suitable for high speed machining of thick and thin wall profiles.
The design target of the whole machine is high-speed and high
precision machining. The structure design and power ratio of the whole
machine are strengthened, so that the equipment has high-strength
bed and moving parts, and the service efficiency is greatly improved.
Adopt high speed and high precision motorized spindle.
X axis adopts high precision helical gear and rack, Y axis and Z axis
adopt high precision ball screw drive.
Automatic tool changing type, automatic tool changing processing
according to the need of the equipment, 6 tool library design.
Main parameters:

Power supply	380V 50Hz
Total power	13.5 Kw
Main axis power	S6:9.6kw S1:8.0kw
Working pressure	0.6~0.8 MPa
Maximum speed	24000r/min
X axis longitudinal travel	4000mm
Y axis travel	640mm
Z axis travel	440mm
X axis speed	50m/min
Y axis, Z axis speed	15m/min
Dimensions	5630x2780x2500mm
Weight	About 2100 kg

Standard configuration:

Serial number	Name of name	Brand brand	Origin
1	Automatic circuit breaker	Schneider	France
2	Phase Sequence Protector	Schneider	France
3	AC contactor	Schneider	France
4	Switching power supply	Schneider	France
5	Relay	Schneider	France
6	Low voltage switch button	Schneider	France
7	Terminal	Honeywell	United States
8	Motor motors	Semic	Italy
9	Close switch	autonicus	Korea
10	Guide rail	HIWIN	Taiwan
11	Lead screw	ABB	Taiwan
12	Solenoid valve	AIRTAC	Taiwan
13	CNC System	Easy Code Technology	Shenzhen
14	Touch screen	Kunlun Tongtai	Shenzhen
15	Drive	Schneider	France
16	Servo Motor	Schneider	France
17	Frequency converter	Alpha	Shenzhen
18	High Flexible Wire Cable	Yongheng	Jiangsu Province
19	Cylinder	BAIDI	Shandong Province

Hot sale products
Packaging & Shipping

Company Profile
Jinan SETH intelligent equipment co., ltd. specializes in the production of aluminum,
upvc window and door machine,curtain wall and hollow glass processing machine equipment
that can meet the needs of different clients, and can also be customized according to customer
requirements of different grades of products.
The company has rich experience in production and more than 10 national patents and
passed ISO9001,SGS,CE certifications, excellent product design and development engineers,
skilled production engineers, experienced production management team and after-sales service
that providing you with a strong guarantee.
The company has all kinds of equipment processing workshop, assembly workshop and
quality inspection center, can independently realize the design of equipment, processing,
assembly,test one-stop flow operation, to ensure the excellent quality of equipment.
our main products including aluminum&uPVC profile machining center, saw machine ,
milling machine,welding machine,corner cleaning machine.corner crimping machine,
punching&drilling machine.
Customer is the foundation, the company in line with the " quality first, customer first" principle.
Please join hands with SETH to lead intelligence.
