Disc Harrow (1BZDZ series) /Disk Harrow/Harrow Disc/Harrow

Product Description

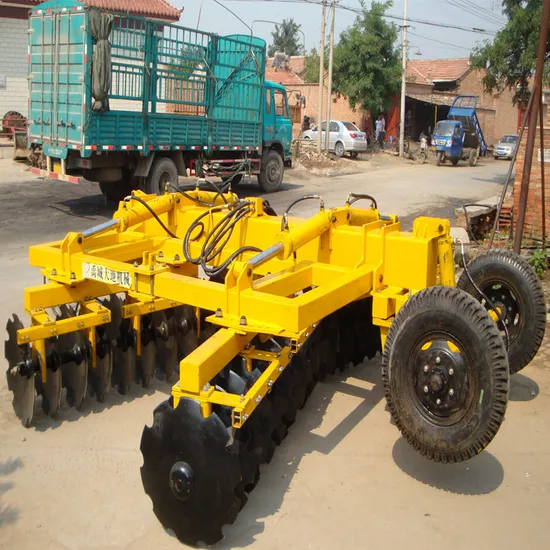

1BZDZ -6.2 Wing Folded Heavy-Duty Contraposition Hydraulic Wing Disc Harrow
1BZDZ series wing-folded heavy-duty disc harrow are mainly used for cleaning away stubble of plants before tillage,or crushing clods after tillage on uncultivated land and in sticky heavy clay soil fields,they can also be used as a plough for primary tillage in dry cultivated fields. The series produced are all fitted with hydraulic rubber wheel for transportation.It is easy to be transported and change direction on the edge of fields.
1BZDZ -6.2 wing-folded heavy-duty contraposition hydraulic disc harrow are constructed around a central robust mono frame , can be installed by 32-66 discs, divided into front and rear two gangs notched disc. It's suitable for destroying, sticky heavy soils, low wetland, straw, corn crop land or land area of high crop plow before stubble plowing. The harrows have 230mm and 240mm,270mm three varieties disc space for choices. Different disc spacing has different effect:230mm and 240mm disc spacing is suitable for multi-purpose,270mm disc spacing is suitable for deep coarse plow stubble plowing, or without the plow surface farming.
Technical parameters:

Model	Unit	1BZDZ-4.4	1BZDZ-4.8	1BZDZ-5.3	1BZDZ-6.2
Overall dimension	mm	5800×4500×1500	5800×4950×1500	5800×5400×1500	5800×6380×1500
Weight	kg	3100~3150	3250~3300	3400~3450	4150-4200
Working width	m	4.4	4.8	5.3	6.2
Working depth		240
Blade spacing	mm	230
No of disc	pc	40	44	48	56
Dia.of disc	mm	660
Transport clearance	mm	>260
Productivity	ha/h	2.7	3.2	3.8	4.65
Matched power	HP	105-110	115-120	125-130	140-160
Linkage		Trailed

---
