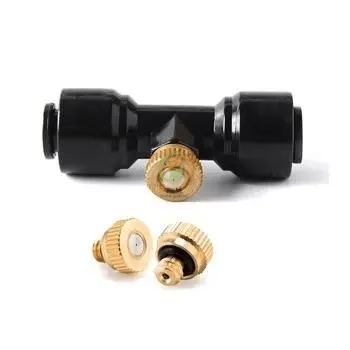

Brass Misting Sprayer Irrigation/Fog Nozzle Factory Sale Mebon Connector Pipe Fitting Brass Nozzle Mist Tee for 1/4 Inch Pipe/Mist Nozzle+ Tee Connector

Product Description

Brass Misting Nozzles Cooling Nozzle with Slip Lock Tee Connector for Garden Greenhouse Irrigation The misting nozzle is made of a sturdy brass with stainless steel orifice.anti-rust, durable, leak-proof, precision.Widely applied for garden, patio, greenhouses, spraying disinfectant, dust.removal, landscaping, lawn misting systems, artificial fog and other humidification place. The misting nozzle can use liquid pressure to form a very fine mist, excellent misting effect, energy and water saving, low cost, good effect, no leakage.The nozzle heads can be easily screwed into any 10/24 UNC threaded mist nozzle opening. A self-sealing O-ring is included with each nozzle, making it leak-proof.
Flow rate : 80-145ml/min.
Thread size : UNC 10-24;
Orifice diameter : 0.1mm to 0.8mm;
Pressure: 30-450psi (20-70kg/cm);
Features: The fine atomizing nozzle uses a brass body with stainless steel core guide vanes. The liquid forms a centrifugal vortex in the guide vanes. The fine hollow mist particles are sprayed from the nozzle holes, which can be widely used in the humidification and cooling of the plant. , Disinfection, dust reduction, landscaping, salt spray test and other artificial fog, this nozzle is made by American precision punching machine, the hole diameter is 0.3mm, well-made, the use cost is more than 10 times less than that of air humidification .

Model Number	PLM-SI5600
Material	Plastic + Brass
Product Name	Brass Misting Nozzles Cooling Nozzle with Slip Lock Tee Connector
Nozzles Orifice	0.5mm
Connection size	Fit to 6mm OD tubing and 10/24'' female thread nozzle
Working Pressure	2~3 KG

---
