Popular Model Juice Concentrator Evaporator

Product Description

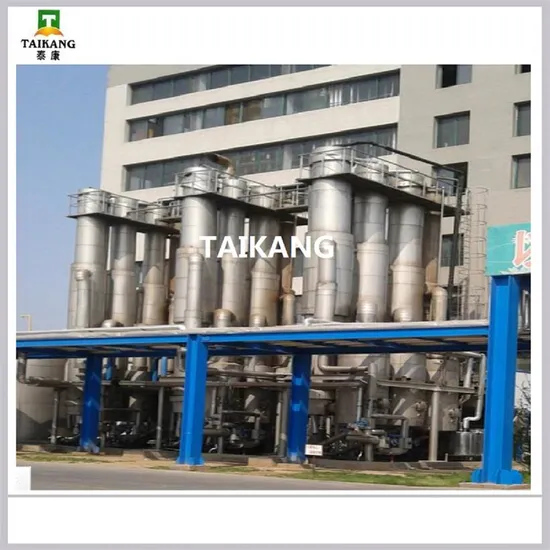

Vacuum Evaporator in Vegetable and Fruit Juice Processing
Specifications
1.Material:SS316L/SS304
2.Steam pressure (Mpa):0.5-0.8
3.Evaporation temperature:45-90
4.Evaporation capaicty: 500~50000L/h
Application:
It's applicable for dairy products, pharmacy, glucose, starch,chemical industry, xylose, citric acid, ammonium sulfate, biological engineering, environmental engineering and waste liquid recovery and treatement. etc.
Equipment structure:
It consists of (first-effect, second-effect, third-effect)separators and evaporators and preheaters,condenser and vaccum pump, feeding pump,circulation pump, discharge pump, condensed water pump and system pipe fittings, etc. Equiped wit CIP spraying cleaning ball, vacuum gauge, thermometer,pressure gauge,and so on.
Equipment characteristics:
1. Material: SUS304 or SUS316L;
2.Full closed process, fast and low temperature evaporation;
3.Inside pipes are mirror polishing seamless sanitary pipes, so material is not easy to paste on the pipe all, it's easy for cleaning;
4.Low steam consumption: 1kg steam can evaporte 3.5kg water;
5.Low evaporation temperature:part of secondary steam can be inhaled into single-effect heater through spray type hot pressure pump, this would make full use of the heat and the evaporation temperature is low.
6.Large concentration ratio: adopt falling film evaporation, which make the material liquid with larger viscosity be easy to flow and evaporate, hard to scale, short cocentration time, the concentration ratio can reach to 1:5.
7.This equipment can realize automatic production, intellectual system management, which is in conformity with GMP standard.
8.Can be desinged into different technological process according to the different characteristics of the materials , also can according to different users' requirements equip with automaticl control system.
Parts of models:

Sr.No	Evaporation Rate(kg/h)	Feed Density	Heat Area	Condenser	Cooling Water	Weight(KG)	Power	Material
1	1000	1-3%	34,21,21	22	30T/H	7000	31.5KW	316L
2	1477	1.5%	52,33,33	34	45T/H	9000	42.5KW	316L
3	1490	15%	54,33,33	34	45T/H	9000	55KW	316L
4	1500	2-5%	51,32,32	33	45T/H	9000	35.5KW	316L
5	1584	11%	53,33,33	34	45T/H	8000		304
6	1615	5-6%	57,35,35	36	48T/H	7500	40.5KW	TA2,316L
7	1956	2.2%	69,42,42	43	60T/H	15000	42.5KW	2205,316L
8	2450	2-3%	86,53,53	54	70T/H	10000	49KW	TA2,316L
9	4170	15%	135,83,83	84	120T/H	13000	37KW	304

---
