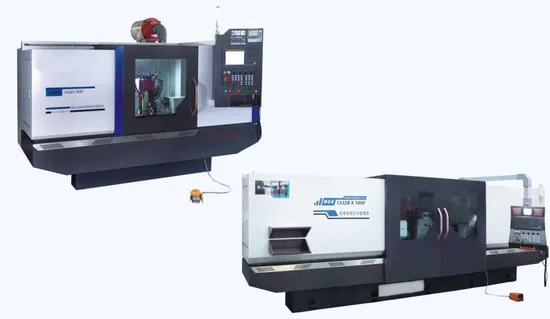

Mgk1320h/1620h/1332b/1632b, High Precision CNC (end face) Cylindrical Grinding Machines

Product Description

Product Description
Main functions and features
• MGK series CNC cylindrical (Endface) grinding machine is suitable for the grinding of the outer circle, end face and conical surface of shaft parts. For shafts with multiple steps, the length of outer circle and shaft shoulder can be completed in one clamping, reducing clamping and high production eff iciency.
• The grinding diameter and length dimension accuracy of parts are controlled by Marposs measuring instrument. Control accuracy is ± 0.001, high accuracy and stable size.
• The CNC system of the machine adopts German SIEMENS 828 or FANUC-Oi-TF (Endface)grinder special CNC system, which is easy to program and operate. And provide a quick programming operation textbook.
• This series machine is a high-precision CNC cylindrical (Endface)grinder. Grinding workpiece accuracy can reach three less than 1um That is: roundness, straightness, and verticality can all less than 1um
• Grinding wheelstock adopts ultra-high precision static and dynamic pressure bearing , and equipped with a machine of constant temperature and pressure oil cooling . The grinding accuracy is high, and the grinding vibration and helix will not be produced due to the bearing factors. Surface roughness can reach up to Ra0.01 (the bearing warranty period is 5 years and lifetime warranty)
• This series of machine use a movable headstock, which can directly drive the workpiece. Grind the left and right sizes in one clamping.
Product Parameters


Detailed Photos

---
