Disc Harrow Arable Land

Product Description

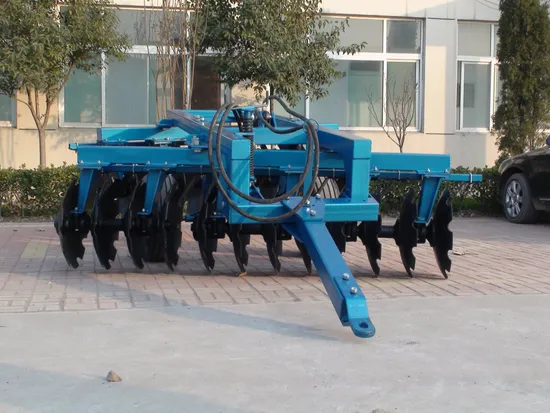

1LYQ series of rotary-driven disc plough
1LYQ series of rotary-driven disc plough is mounted with tractor by the rear 3point suspension device and drives the plough discs to revovle in the way of delivering power by tractor's rear PTO to the disc plough's gear box.This machine is mainly suitable for cultivation on paddy field with the advantages of non-tangling weeds,high quality and efficiency.
Feature
1.A disc plough can be forced to penetrate into the soil which is too hard and dry for working with a moldboard plough.
2. It works well in sticky soil in which a moldboard plough does not scour.
3. A disc plough works well even after a considerable part of the disc is worn off in abrasive soil.
4.It works in loose soil also (such as peat) without much clogging.

Model	unit	1LYQ-422	1LYQ-522	1LYQ-622	1LYQ-722	1LYQ-822
Working width	mm	880	1100	1320	1540	1760
Working depth	mm	200-240	200-240	200-240	200-240	200-240
Rotating speed of input shaft	r/min	540/720	540/720	540/720	540/720	540/720
Rotating speed of output shaft	r/min	90~120	90~120	90~120	90~120	90~120
Matched power	hp	18~22	25~30	40~50	50~60	60~70
Overall weight	kg	240	276	321	357	393
Linkage	Standard three point mounted

Web:lianshengmachinery.en.made-in-china.com
Yucheng Liansheng Machinery Co.,Ltd.
Yucheng City,Shandong Province, China

---
