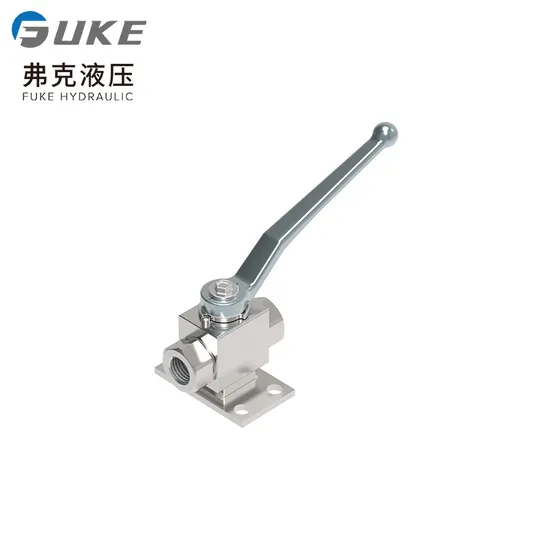

Bkr High Pressure Two-Way Ball Valve

Product Description

Product Description
BKR/BKN/BKHL/BKHS High pressure two-way ball valveHigh pressure two-way ball valves with square body and standard connections at both ends in
BSP female thread (DIN ISO 228),
NPT female thread (ANSI B1.20.1),
UN/UNF female thread (SAE J 514),
24° tapered light connection (DIN2353)06L-42L,
24° tapered heavy connection ( DIN2353)06S-38S,
Pressure range up to 420 bar/6000 PSI
Work temperature range: -20°C to +100°C Products Details

Product Standards:	DIN2353/ISO8434/ISO228
Product Materials:	Carbon steel/stainless steel
Surface Finish:	White zinc/zinc-nickel alloy
Thread:	NPT SAE BSP ORFS metric thread
Product Features:	High working pressure, floating ball design ensures a leak-free seal and automatically compensates for seat wear or installation of different centres, hard chrome plated mirror polished ball, greatly reduces friction and seat wear and is available in a wide range of seat materials to suit a variety of special applications.
Application:	Hydraulic systems are particularly suitable for construction machinery, agricultural machinery, mining machinery and painting machinery, but also for steam and oil and gas media (but please note the choice of seat and seal material)

Detailed Photos

DN mm	LW mm	PN* mm	L1 mm	B mm	H mm	H1 mm	H2 mm	H4 mm	SW mm	M	S mm
4	5	500	37	26	43.4	32	12.8	11	9	M5	3
6	6	500	37	26	46.4	32	12.8	11	9	M5	3
8	8	500	37	26	43.4	32	12.8	11	9	M5	3
10	10	500	42	32	49.2	38	16.25	10.9	9	M5	3
13	13	500	48.2	35	51.2	40	17.25	10.9	9	M5	3
16	15	500	47	38	61.9	46	18.7	15.5	12	M6	3.5
20	20	400	60	48	73.4	57	24.5	16	14	M6	4
25	24	350	65	57	76.6	60	26.5	16	14	M6	4
32	32	400	83.4	80	104.4	85.4	39.5	18.5	17	M8	5
40	38	400	91	90	111.4	92.4	42	18.5	17	M8	5
50	47.5	400	100	111	129	110	52	18.5	17	M8	5

Company Profile
Ningbo Fuke Hydraulic Machinery Co., Ltd. is a specialized company dedicated to the production and research and development of hydraulic fluid connectors and control valves. The company mainly provides hydraulic fitting, high-precision hydraulic valve blocks, high-pressure ball valves, and check valves that meet ISO, DIN, and SAE standards.
The company has experienced hydraulic system designers, who can provide customers with relevant technical support and all hydraulic accessories solutions to improve customer procurement efficiency.The company earnestly implements the 1S09001:2000 quality system, and its products are widely used in metallurgical industry, drilling platform equipment manufacturing, construction machinery, wind power generation, petrochemical industry, machine tool manufacturing
Producing Department
Inspection Area Warehouse
Our Advantages 1. Raw material, 100% testing before delivery, 99% no leakage, and wonderful torque.
2. Have cooperated with a lot of importers all over the world.
3. Experienced in doing business with big customers as per high standard request
4. Quick and stable delivery time
5. Professional R&D Team.
6. Free samples could be sent by request.
Certifications
FAQ1. Can I get a Sample?
We do provide some small specific samples accordingly based on the process we situate in.
2. Do you provide customized products?
We are good to offer customized services in terms of logo labeling, manufacturing based on samples or blueprints, etc.
3. Will communication be a problem?
Our sales team had great knowledge of our products and acquired solid English communication skills in both written and speaking; the communication can be accessed either literally or verbally via any social networking platform.
4. Payment Method.
L/C, T/T, PayPal, Western Union, etc. Principally we do not accept third-party transactions via China's mainland region channel.
5. Why Choose us?
Quality: 100% leakage, material, and functionality test in process and before shipping.Variety: Highly customizable flexibility. Reliability: 5 years of manufacturing experience.Efficiency: Quick& Effective response.Utility: We are Manufacturer.Flexibility: OEM/ODM are provided.Authentication: Real-time plant audit provided.Competitiveness: Price is negotiable on large volumes.

---
