Internal Mixer/Internal Rubber Mixer Manufacturer/Rubber Product Processing Machinery

Product Description

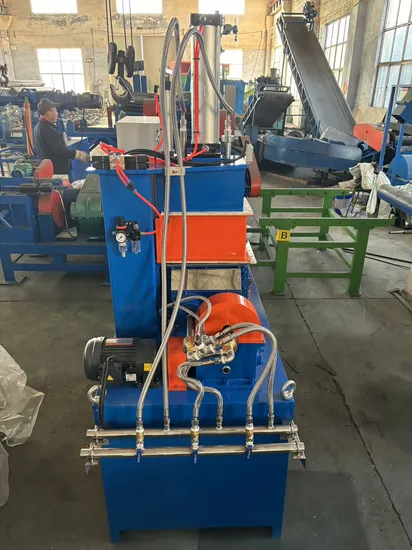

Internal Mixer/internal rubber mixer manufacturer/rubber product processing machinery Introduction Rubber kneader mahcine is a raw material mixer, divided into dispersion kneader and Banbury kneader. It is mainly used for chewing and kneading natural rubber, synthetic rubber, EVA or PVC particles with various chemical materials, while , and then supplying the compound to calender machine machine or hot press machine for further processing and molding. heatingmixing Structure
The rubber kneading machine consists of a pneumatic control system, an electrical control system, a tilting mechanism, a mixing chamber, a main transmission system, a dust prevention device, a thermal resistance, a rotor, and a cooling/heating system. Easy to operate and maintain. Low labor intensity and low energy consumption. Features and Advantage 1..Four shaft head sealing, using new technology of YG8 cemented carbide Mosaic, not leak powder and glue. 2..The mixing chamber using the 20 # boiler plate which is processing by forging and fire. 3..The two Shaft is to use high-quality steel 42 Cr Mo (Grom) made by forging heat treatment. 4..The rotor shaft spindle seam D632 hard alloy welding electrode welding. 5.Two support the rotor shaft bolt and the mixing chamber after polishing hard chromium plating of 0.15-20m not only corrosion,rust, and hard wear. 6.Two rotor shaft, mixing chamber, top bolt, gearbox casing and so on , polishing after heat treatment furnace, temperature 6-700 degrees, eliminate stress, enhancing the toughness, increased by more than five times of the service life.

---
