Product Description
Product Description

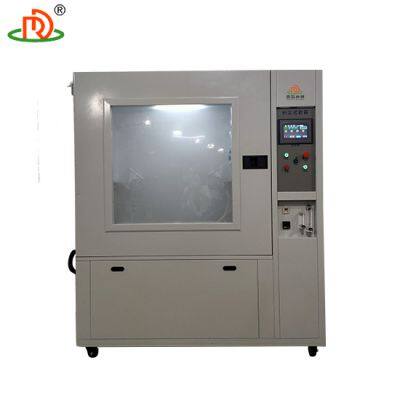

1. Formed using CNC machining box, nice shape, and no reaction by the handle, easy to operate.
2. Imported high grade stainless steel inner tank (SUS304) mirror panels, use of A3 steel box outside the gall spray, increasing the appearance of the texture and cleanliness.
3. Equipment containing dust vertical circulation of air, dust can be reused for testing; device itself has a good sealing performance, test, laboratory test can clearly observe the situation; device equipped with a vacuum system to meet the needs test; equipment dust the bottom of the device can be replaced.
4. Large observation window with bright lights to keep the box, and use of tempered glass embedded heating element, at any time a clear observation box condition.
5. Test with 50mm diameter holes for the external test power line or signal line.
APPLICAITONS
Automotive, vehicle parts
Electronic-cabinet product
LED & lighting product
Mobile, communication devices
Outdoor facilities…
TEST STANDARDS
IEC 60529, Clause 13.4, IP5X/6X (with optional underpressure mode)
SAE J575, Clause 4.5, Dust Exposure Test
DIN 40050, IP Codes 5K and 6K
IEC 60068-2-68, LA2, vertical dust flow
SPECIFICIATION
Item
| Specification
|
Internal dimension
| 800W*800D*800Hmm
|
External dimension
| 1300W*1000D*1700Hmm
|
Test sample
| Size W20cm- L30cm-D15cm, weight 0.5kg
|
Chamber material
| SUS304 Stainless steel
|
Specifications of square mesh sieve
| Mesh hole 75um, mesh metal wire diameter 50um
|
Talcum powder amount
| 2kg/ m³
|
Airflow speed
| No more than 2m/s
|
Door
| Left open door with tempered glass door
|
Controller
| PLC Touch Screen controller, programmable to set as below cycle:
a. Blowing dust time (Stop/Blow) m/s
b. Cycle time: can be adjusted
c. Pre-set test time: 0s ~99m99s
|
Vacuum system
| Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump
|
Vacuum pump capacity
| 60-600 L/H
|
Fan
| Centrifugal fan
|
Safety protection devices
| Meter over-temperature function, Phase shortage protection, Power short-circuit protection
|
>>
