Nadun Manufacturer Sells Shaft Type Disc Type Vertical CNC Lathes Vtc75

Product Description

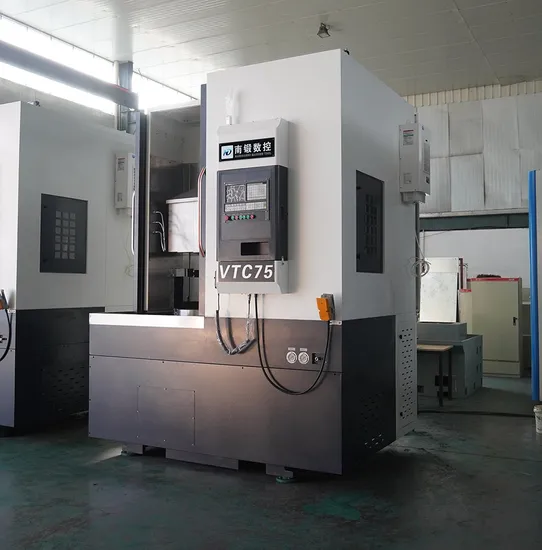

Nadun VTC75 Vertical CNC Lathe Machine for Ultra Precision and High Efficiency Processing Product Description
This CNC Vertical Lathe features:
1. The base, column, and slide are made of high-grade gray cast iron for strength and long-term accuracy stability.
2. Utilizes a roller-type linear guide for ultra-high rigidity and heavy load capacity, improving positioning accuracy and load-bearing capacity.
3. The servo main motor connects to the spindle through a synchronous toothed belt, ensuring repetitive positioning accuracy with stepless speed control for various machining requirements.
4. Longitudinal and transverse feeds are controlled by high-power servo motors, with a load balancing mechanism in the longitudinal feed to extend the screw's life cycle.
5. Support at both ends of the ball screws uses imported double-row bearings, ensuring machining accuracy.
6. Features an adjustable electric lubrication pump for intermittent automatic lubrication, ensuring precision in all moving parts.
7. The tool holder adopts a multi-station CNC tool holder for one-time clamping, reducing tool change time and improving work efficiency.
8. The spindle offers customization options such as a rotary table or hydraulic chuck at the upper end, and a rotary oil cylinder (single-piston or double-piston) at the lower end for versatile workholding capabilities.
Detailed Photos
Hydraulic chuck
Knife tower
Pressure gauge
Air conditioning refrigeration
Touch screen and Buttons to operate
Electrical cabinet
Pump station

Product Parameters

Project	Specification	Unit	VT45	VT65	VT75
Machining Capacity	Max. Turning Diameter	mm	∮560	∮650	∮750
	Max. Cutting Diameter	mm	∮450	∮600	∮700
Spindle	Spindle Face Type		Straight	Straight	Straight
	Spindle Speed	rpm	100-2000	100-1000	100-1000
	Chuck Diameter	mm	500	500	610
Tool Magazine	Tool Capacity	pc	Horizontal 8	Horizontal 8	Horizontal 8
Travel	X-Axis Travel	mm	400	420	700
	Z-Axis Travel	mm	500	500	700
Hydraulic Unit	Oil Tank Capacity	L	40	40	40
	Hydraulic Motor Power	kW	2	2	2
Motor	Spindle Servo Motor Power	kW	15	19	22
Accuracy	Repeated Positioning	mm	±0.008	±0.005	±0.005
	Positioning Accuracy	mm	±0.008	±0.008	±0.008
Machine Dimensions	Length * Width * Height	mm	2200*2300*2600	2150*2210*2970	2700*2100*3200
	Weight (with Accessories)	kg	5000	7000	9500
Power Requirements	Power Supply	3¢-AC 380V 50HZ±5%
	Leakage protection, power failure protection	√
	Three-color indicator for machine status	√
	Long-term stable operation under the following conditions	Ambient temperature 5~38°
		Ambient humidity<85%
	Machine noise meets national standards	√
