DC Inverter Monoblock 16kw Heating Cooling Dhw Air to Water Heat Pump with R32 Refrigerant and WiFi Control

US$1,400.00-1,800.00 2 Pieces (MOQ)

Basic Info.

Model NO.
VLKS-16CPB2B
Heat Source Type
Air Source Heat Pump
Color
Black
Warranty
2 Years
APP-Control
Yes
Feature
Stable Performance and High Cop
Lead Time
25-40 Days
Water Pump
Famous Brand Inverter Twin Rotary Compressor
Max Outlet Water Tem.(R32)
60ºC
Compressor
DC Inverter Twin Rotary Compressor
Type
Monoblock
Refrigerant
R32
Heat Exchanger
Plate Heat Exchanger
Expansion Valve
Top Brand Expansion Valve
Certificates
CE
Efficiency
ERP a+++
Housing
Galvanized Sheet
Transport Package
Carton Box with Pallet
Specification
1115mm*425mm*1280mm
Trademark
vegardis
Origin
China
HS Code
8418612090
Production Capacity
30000 Pieces/Year

Packaging & Delivery

Package Size
116.00cm * 52.00cm * 144.00cm
Package Gross Weight
150.000kg

Product Description

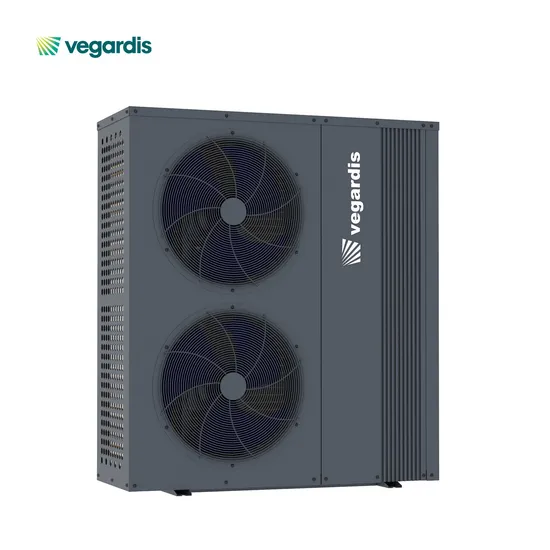

DC Inverter Monoblock 16kw Heating Cooling Dhw with R32 Refrigerant and WiFi Control Air to water Heat Pump
ECO friendly new refrigerant: R32
GWP (Global Warming Potential) only 675, only approximately 1/3 compare with R410A.
15 years in manufacturing heat pump
Well-known brand compressor, twin-rotary and DC Inverter technology, the twin rotors balance each other for anti-vibration,creates lower noise but more efficient.
Welling Brushless DC fan motor, with good quality of long time running test and low noise.
Saginomiya brand electronic expansion valve for precise refrigerant control.
Vilo Water pump,Low noise, low vibration, high efficiency, high reliability, easy maintenance
High COP/EER performance for save energy Heat Pump Project

Customer review of heat pump
Product Parameters
Model VLKS-06CPB2B VLKS-09CPB2B VLKS-12CPB2B VLKS-16CPB2B
Heating capacity A7/W35ºC(EN14511) KW 6.21KW 8.9KW 12KW 16.3
Heating capacity A2/W35ºC(EN14511) KW 5.56 7.97 10.8 14.49
COP A2/W35(EN14511) 4.56 4.53 4.43 4.49
COP A7/W35 (EN14511) 4.93 4.92 4.8 4.88
Cooling capacity A35/W7ºC KW 4.9 5.9 8.1 11.4
EER A35/W7 (EN14511) 2.97 2.95 2.86 2.85
Cooling capacity A35/18 (EN14511) KW 6.35 8.1 11 15.6
EER A35/W18 (EN14511) 3.97 3.89 3.53 3.63
Electric supply 230V/50Hz 230V/50Hz 230V/50Hz 230V/1Ph Hz
Refrigerant R32
Unit dimensions LXWXH mm 1115x425X710 1115x425x710 1115x425x960 1115x425x1280
Package dimension LXWXH mm 1160x520x860 1160x520x860 1160x520x1110 1160x520x1440
Net Weight Kg 90 90 105 140
Noise level dB(A) 46 46 50 52
Loading quantity for 20'/40' 44/88 44/88 44/88 22/44


Monobloc Air Source Heat Pumps Working Principle Diagram
Vegardis provides the monobloc heat pump with an integrated main circulation pump. During installation, the installer needs to ensure the proper connection of the heat pump with other components, such as the buffer tank (for space heating/cooling), storage water tank (for domestic hot water), and water pumps (for circulating space heating/cooling water and domestic hot water)Additionally, external fittings are required, including the safety valve, water refill valve, and hot water valves (three-way valve). lt is necessary to incorporate a temperature sensor in the storage water tank. Furthermore, an additional electric heater can be installed in either the DHW tank or the buffer tank, allowing it to receive control signals from the heat pump.
Certifications

Lab
45KW Air Source Heat Pump Unit Performance Laboratory
Test data range:
1 Cooling and heating capacity
2 Cooling and heating power consumption
3 Cooling and heating performance coefficient
4 Maximum load condition
5 Low temperature working condition
6 Unit system temperature and pressure
7 Water-side pressure loss
8 Measured electromechanical parameters: voltage, current, power, power factor
Applicable refrigerant: 410A, R134A, R22, R404A, R407A, R290, R32
Laboratory air-side dry bulb temperature control range: -35 ~ +50 ºC;
Exhibitions
FAQ
1.How many years have your company been in heat pump industry?
Over 15 years in heat pump industry with 200 staff,20 engineers team
2.Do you have laboratory?
45KW Air Source Heat Pump Unit Performance Laboratory
applicable refrigerant: R290, R32,410A, R134A, R22, R404A, R407A,
laboratory air-side dry bulb temperature control range: -35 ~ +50 ºC;
3. Do you accept OEM & ODM?
Yes. We can produce high quality custom made air source heat pump according to customers' requirement, modify the products to satisfy client's requirements and work together with clients to design a new product.
4. What support do you offer to clients?
We can provide product certification requirements for local markets; provide catalogs, technical manuals;
5.How long is the Heat Pump delivery time?
Generally production time will be 25-35 days,
6.What is your terms of payment for heat pump ?
For small order,100% paid in advance. For big order 30% T/T in advance ,balance before shipment.
7.How long can I get feedback after sending inquiry
We will check inquiry and message everyday.Our sales clerk will reply to you accordingly in 24 hours. Please complete your email and telephone or mobile number in your personal information so that we can contact you soon.
8.How about the quality control?
Finished products 100% inspected before package,ISO9001 factory
9.How about the shipment?
We provide shipment by sea or by train according to your requirements.
10.How is your service?
We provide pre-sales,in-sales and after sales service within 24 hours
