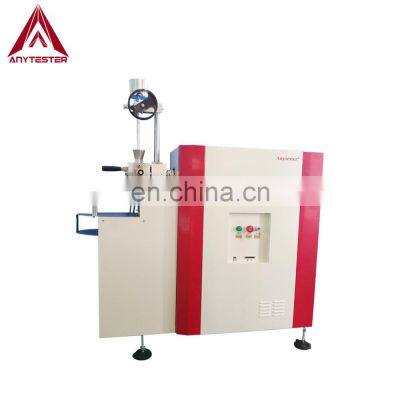

Product DescriptionAT400 Torque Rheometer is a measuring system for studying the flow, plasticizing, heat and shear stability of polymers. This system consists of a platform and some function units, such as the mixer and single-screw or twin-screw extruder. The platform connected with a function unit can measure flow and compounding behaviors, critical processing parameters of temperature, pressure, torque and viscosity of polymers in the laboratory-requiring only small sample volume. Designed to an excellent system with high measuring precision, handling flexibility and testing reproducibility, this instrument has been widely applicable in science research, quality control and process experiment. The whole system is as follows:Details & Features1. PlatformThe platform, linked with an external PC through industrial bus, provide all functionality for driving and controlling the function units and data record. It has mechanical and electrical interface matching with the mixer or extruder. We have two kinds of structures to match the function units with the platform. One is a simplified structure and another is a unit movable structure that makes the function unit on a handcart to exchange it more easily. You can select an assembly to carry out testing tasks. The platform and its technical parameters as Fig.1 and Tab.1.ParametersMotorPanasonic Servo Motor & Driver, 3.0kwSpeed range0.1~200rpmSpeed accuracy0.05%F.S.Torque0~300NmTorque accuracy0.1%F.S.Melt pressure range0.1~100MPaMelt pressure accuracy0.5%F.S.Temperature range0~350℃Temperature accuracy±1℃Temperature channel5 (4 channels for controlling temperature)Power supply3phase, AC380V, 50Hz, 30A2. MixerThe mixer is applicable for testing of thermoplastics, thermosets, elastomers and other similar materials under the influence of temperature and shear. Some important information, such as fusion time, heat & shear stability of PVC, melt viscosity and cross linking property of polymers, can be obtained by this unit. It is equipped with 3-pieces composed electrical heating chambers and two exchangeable rotors. The chambers and rotors are made of 1Cr18Ni9Ti and 3Cr13 stainless steel respectively, and the rotors axle seal are made of Cu-C alloy to ensure perfect sealing. The Mixer, rotors and its parameters are shown as Fig.2 and Tab.2.ParametersCapacity60ml200ml300mlMaterial304Max. temperature350℃Max. torque150Nm250Nm250NmRotorsRoller (Banbury, Cam or Delta optional)Speed ratio of rotors3:2Heating zone3 channelsHeating modeElectirc heating with imported heating tubeTotal heating power1800w3600w4800w3. Single screw plastic extruder and diesThe extruder connected with a die is used for testing of rheological characteristics and process ability of thermoplastics especially polyolefins, for producing test samples in the laboratory. There are 5 types of dies can be attached to the extruder. They are Rod capillary, Flat film, Rod, Pipe and Coated wire. These dies create Profiles of a defined geometry. Temperatures and melt pressure measurements along the extruder barrel and die enable the accurate definition of melt condition. A appropriate processing condition can be selected during the extrusion. Particularly, a powerful extrusion capillary rheometer can be constructed by using the extruder together with capillary dies. Rheological data, such as shear rate, shear stress and viscosity can be evaluated with Rabinowitsch and Bagley corrections. The screw, barrel and dies are made of 38CrMoAlA and 3Cr13 alloy steel. The extruder and dies and their parameters are shown as Fig.3 and Tab.3.ParametersL:D25:1 or 28:1 or 30:1Srew diameter20Compression ratio2.1:1 for pellets,2.4:1 for powderMax. temperature350~400℃Heating power800w/channelHeating channel4Temperature mesuring channel1DiesRod capillaryDia.: Ф1.0, Ф1.27, Ф2.0L:D: 20:1, 30:1, 40:1PipeInner dia.: Ф10, external dia.: Ф12.5RodФ5Coated wireCore: Ф1.5, die: Ф4.0Flat film50×1.8 (L×W)4.Single screw rubber extruder and dies The extruder connected with a die is used for testing of rheological characteristics and process ability of rubbers, for producing test samples in the laboratory. The extruder and dies and their parameters are shown as Fig.4 and Tab.4.ParametersL:D12Screw diameter30Compression ratio3:1Max. temperature350~400℃Heating power800w/channelHeating channel3Temperature measuring channel1Cooling modeCompressed air coolingDiesGaver or cylinder5. Conical twin screw extruder and diesIntermeshing conical twin screw extruder connected with the platform can be used to simulate the production process of conical twin screw extruder. It adopts unique structure design, easy and fast to clean after experiment of corrosive material. The extruder is especially suitable for the processing pf PVC power, connected with different dies, can directly extrude sheet, pipe, profiles, etc. The extruder and dies and their parameters are shown as Fig.5 and Tab.5.ParametersSrew diameter20~39mmEffective length of screw325mmBarrel length340mmMax. temperature350~400℃Heating power800w/channelHeating channel3Temperature mesuring channel1Cooling modeCompressed air cooling6.Parallel Twin screw extruder and diesParallel twin screw extruder is maily used for filling, blending, modification and enhancement of rubber, plastic and engineering resin, and also for devolatilization of super absorbent resin. The extruder can also be used for extruding biodegradable masterbatch, polyamide polycondensation and polyurethane polymerization, and producing pelleting of carbon powder & magnetic powder, cable insulation material, sheath material, PVC cable and various silane crosslinking materials. The extruder and dies and their parameters are shown as Fig.6 and Tab.6.ParametersSrew structureBuilding block strutureL:D40Screw groove depth3.5mmMax. temperature350~400℃Heating mode5 phase electric heatingCooling mode5 phase compressed air coolingFeeding modeScrew typeRotation speed of screw10~480rpmExhaust modeVacuum exhaustMeterial typePolyolefin, PA, PET, PBT7.Film blowing machine Film blowing machine is suitable for film production on a small scale for lab use. The parameters are shown as Fig.7 and Tab.7.ParametersPulling roller dia.120mmWinding roller dia.120mmWinding speed0~140mm/sDie dia.24mmFilm blowing dia.50~120mmWinding width78~190mmDie gap0.3~1.8mmDimensions1050×700×1880mm8. Software and data sheetA set of software for the instrument is follows:(1) Platform software.(2) Mixer software.(3) Extruder software.(4) Viscosity software.They run in the windows XP system.The interface of the platform software is shown as Fig 8. Some typical data sheets exporting from the software are shown as Fig.9, Fig.10, Fig.11, Fig.12, Fig.13, Fig.14, Fig15.SpecificationModelAT440Main material of equipment316LCapacity500mlSealing structureFlange sealing structureDesigned pressure≤10MpaDesigned temperature≤450℃Heat methodCeramic heating ringFiltering grade1000/1500/2000 meshesInterface size16mmOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
