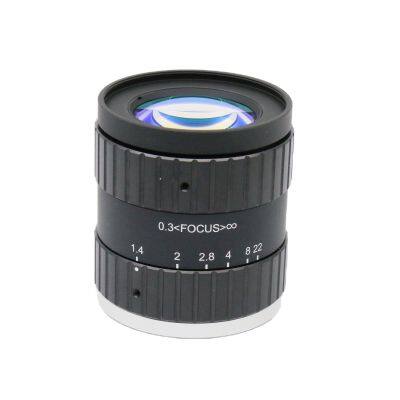

| Technical Parameter of SWIR Lens | |||
| Model No.: 02-011-002 | |||
| No. | Iterm | Specification | |
| 1 | Imager sensor | 1"(16.4mm) | |
| 2 | Wavelength | 700~1800nm | |
| 3 | FL | 35mm | |
| 4 | Interface | C-Mount | |
| 5 | Aperture range | F1.4-F22 | |
| 6 | FOV (D×H×V) | 1" | 26.54°×21.23°×15.92° |
| 1/2" | 13.19°×10.55°×7.91° | ||
| 1/3" | 9.93°×7.94°×5.96° | ||
| 7 | Object size (At the nearest focus distance) | 1" | 135.934×108.747×81.56mm |
| 1/2'' | 66.93×53.55×40.16mm | ||
| 1/3" | 50.1×40.08×30.06mm | ||
| 8 | RFL（in air） | 21.49mm | |
| 9 | Control mode | Focus | Manual |
| Iris | Manual | ||
| 10 | Distortion rate | 1" | -1.94%@y=8mm |
| 1/2" | -0.49%@y=4.0mm | ||
| 1/3" | -0.27%@y=3.0mm | ||
| 11 | Focusing range | 0.3m~∞ | |
| 12 | Weight | 189g | |
| 13 | Working temperature | -20℃～+60℃ | |
| Technical Parameter of SWIR Lens | ||||
| No. | Iterm | Model No. | ||
| 02-011-001 | 02-011-002 | |||
| 1 | Imager sensor | 1"(16.4mm) | 1"(16.4mm) | |
| 2 | Wavelength | 700~1800nm | 700~1800nm | |
| 3 | FL | 25mm | 35mm | |
| 4 | Interface | C-Mount | C-Mount | |
| 5 | Aperture range | F1.4-F22 | F1.4-F22 | |
| 6 | FOV (D×H×V) | 1" | 36.66°×29.35°×22.04° | 26.54°×21.23°×15.92° |
| 1/2" | 18.37°×14.70°×11.03° | 13.19°×10.55°×7.91° | ||
| 1/3" | 13.79°×11.03°×8.28° | 9.93°×7.94°×5.96° | ||
| 7 | Object size (At the nearest focus distance) | 1" | 198.59×157.08×116.85mm | 135.934×108.747×81.56mm |
| 1/2'' | 97.07×77.46×57.99mm | 66.93×53.55×40.16mm | ||
| 1/3" | 72.58×57.99×43.44mm | 50.1×40.08×30.06mm | ||
| 8 | RFL（in air） | 20.84mm | 21.49mm | |
| 9 | Control mode | Focus | Manual | Manual |
| Iris | Manual | Manual | ||
| 10 | Distortion rate | 1" | -3.09%@y=8mm | -1.94%@y=8mm |
| 1/2" | -0.72%@y=4.0mm | -0.49%@y=4.0mm | ||
| 1/3" | -0.4%@y=3.0mm | -0.27%@y=3.0mm | ||
| 11 | Focusing range | 0.3m~∞ | 0.3m~∞ | |
| 12 | Weight | 186g | 189g | |
| 13 | Working temperature | -20℃～+60℃ | -20℃～+60℃ | |
