USB-C Poe Splitter LAN Adapter

Product Description

POE to type C network adapter
802.3af/at compatible
Overview:
TS925C is a 10/100Mbps isolated POE to Type-C network adapter which compliant with IEEE802.3af/at standard.
Charging Mobile phone/tablet while surfing the Internet, drive free plug and play
Body Size:78*25*35mm.
Standard isolation transformer 37~57V input.
POE protocol:IEEE802.3af /at
Transmission rate:10/100Mbps
Power supply pins:12+/36-; 45+,78-. Data pins(1,2)+/(3,6),(4,5)/(7,8)
POE power output:5V/9V adaptive max 25w.
Isolation voltage:1500V
Power output:Type-c male
PD3.0 standard fast charge, USB2.0 network.
Support android, harmony OS, IOS system.

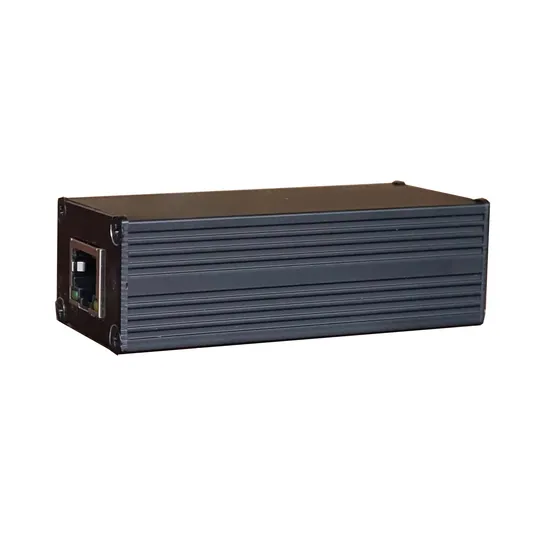

Aluminum alloy case, elegant appearance, better heat dissipation Picture and size(mm):
Electrical parameters:

Voltage input	Active POE 802.3af/at
Parameters	Minimum	Typical	Max
V-input	37Vdc	52Vdc	57Vdc
Output	5V 3A	9V 2A	9V 2.5A

Electrical properties (Ta=25ºC)

Item		Parameter		Unit
environment:
Work temp.			-10~70	ºC
Storage temp.			-30~85	ºC
			-30~80	ºC
			-25~75	ºC
Storage humidity			5~95	RH
Protection circuit
Maximum input voltage		57.0		V
Minimum input voltage		37.0		V
Discharge protection current		3		A
Conversion circuit:
Maximum output current		5V 3A/9V 2.5A
		2(typical)
Conversion efficiency		Typ. ≥90%
transformer		1500		V

---
