The Handheld Uav Detection and Positioning Device Has The Function of Pilot Position Navigation

Product Description

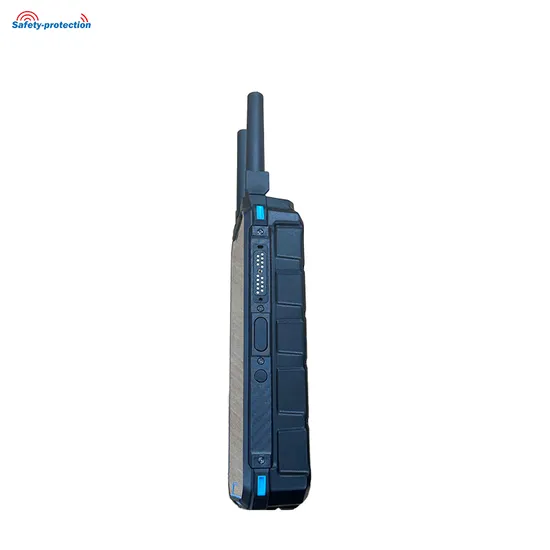

Function Introduction Introducing the TJ-343: a single-soldier, portable marvel that seamlessly blends cutting-edge drone spectrum detection, protocol parsing, and RID identification. Experience real-time, razor-sharp detection and alerts tailored for drones and their pilots. With pinpoint accuracy, the TJ-343 tracks and plots trajectories for common drones and remote controllers alike.
Crafted with a sleek, compact design, the TJ-343 is your go-to for effortless portability and enduring battery life. It excels in diverse low-altitude security operations, from safeguarding major events and supporting security tasks to empowering public safety patrols, counter-terrorism in special forces, securing *** epicenters, guarding borders, and protecting vital infrastructures like airports, power plants, and petrochemical parks.
Functional characteristics 1) UAV positioning [1] : A single machine can locate the location of the UAV, which can be displayed in the form of "UAV icon" on the electronic map interface.
2) Flying hand positioning [2] : The position of the remote control (flying hand) can be located in a single machine, which can be presented in the way of "remote control icon" on the electronic map interface.
3) Detection and recognition [3] : With spectrum detection function, the models can be identified including common models such as DJI and Daotong, as well as a variety of models such as homemade traversal machine and WiFi machine.
4) FPV detection: It can detect and identify the homemade traversal aircraft and analyze its first-view flight picture in real time.
5) Pilot position navigation [4] : The system can plan and search the action route of the drone operator and provide "one-click position navigation" function.
6) Unique identification [5] : It can identify the unique serial number (SN) of DJI series (using OcuSync) drones, RID protocol drones, and 2WIFI drones.
7) Trajectory tracking [6] : multiple UAV flight trajectories can be displayed simultaneously on the electronic map interface.
8) Multi-dimensional information monitoring [7] : It can display the current UAV model, position information (latitude and longitude), speed, altitude and pilot position (latitude and longitude) in real time in the detection list bar.
9) Whitelist [8] : The whitelist list can be set, and no alarm will be generated when the system detects the UAV in the whitelist.
10) RID monitoring [9] : With RID remote identification function, support for a variety of standard protocols.
11) Intrusion alarm: When the intrusion of the drone is detected, the device will alarm by sound and vibration.
12) Track playback: Support historical track playback function, assist security personnel to analyze historical UAV flight data.
13) Detection records: The detection record list can retain the historical detection records, including the UAV serial number, model, frequency and other multidimensional information.
14) Visual data analysis: Support UAV detection and flight data statistical analysis, can be displayed through a graphical interface.
15) Networking intercom: The device can be connected to the wireless network, supporting real-time intercom function between devices. (Optional function)
Note: The locatable UAV in [1]-[8] is a DJI series model using OcuSync image transmission mode.
[9] GB 42590-2023, ASTM F3411 Remote ID, ASD-STAN prEN 4709-002
Basic parameters

Detecting frequency band	100MHz~6GHz
Detecting radius	1.5~2km (urban environment) 2-3km (open environment)
response time	3~5s
Positioning range	1-2km (urban environment) 2-3km (open environment)
Detection quantity	≥ 10 sorties (simultaneously)
Battery life	3~4h

---
