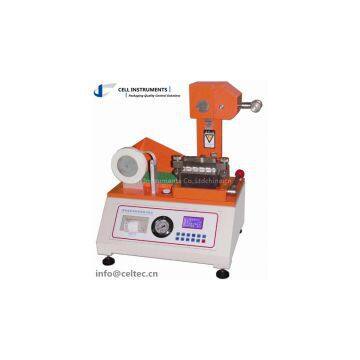

Scott type internal bond strength tester Plybond Tester

Product Details

Product Description

Product Description
Scott type internal bond strength is for the internal bond strength of paper and board. It has wide application in single and multi-layer paper and board, including coated paper and those with covered with synthetic polymer, board like case board, white board, grey board, ivory board etc.
Scott type internal bond strength Features
1.LCD display, PVC manual type panel
2.Microcomputer control with automatic measurement and data auto statistics and storage
3.Hydraulic sampling and pressure adjustable
4.Precise sample clamping and orientation
5.Micro printer
Scott type internal bond strength technical data
Sample size: 25.4*25.4mm
Sample clamp force: 0~40kg/cm2 (adjustable)
Impact angle: 90°
Resolution: 0.001lbf/in²
Measuring range: A: 0-500J/M2 B: 500~1000J/M2 C: 1000~1500J/M2
Indication error: A: ±1J/M2 B: ±2J/M2 C: ±5J/M2
Unit: lb-ft/in², J/M2
Dimension: 520mm(L)×420mm(W)×700mm(H)
Weight: 72kg
Standard
TAPPI-UM403, GB/T 26203-2010

---
