for Steel Pipe Sch10/Sch40 1 1/4"-6 " Economic Manual Roll Groover Welping Pipe Grooving Machine

Product Description

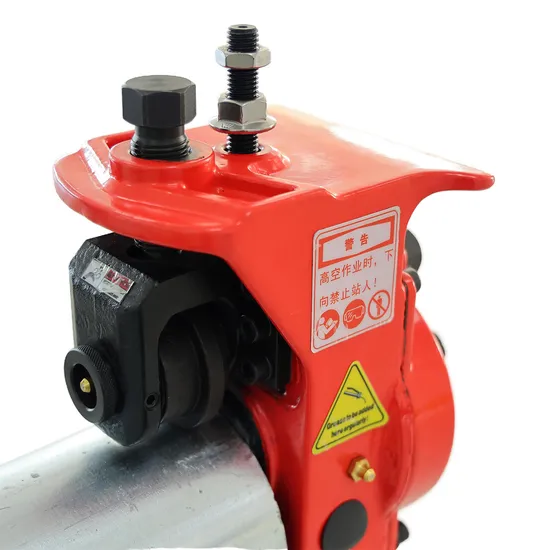

Manual Pipe Grooving Machine
Model RG-3M combination Roll Groove is designed TWO TOOLS IN ONE.
*With its compact and portable design, this roll grooving machine is perfect for performing medium-volume grooving tasks in tight spaces and on job sites
*Chuck your workpiece into the 300 threading machine's power drive or horizontal threading machine, or use a manual roll groove to create threads in place without the need for a power supply
*Heavy duty design for fire-fighting pipelines size range 1 1/4"~6" (DN25~DN168),SCH10 to SCH40).
*Groove depth lock net ensures high-quality grooves and high grooving efficiency.
*Quick and easy swap shafts in 30 seconds.

Model	RG-3M
Suitable materials	Carbon Steel,Stainless Steel
Capacity	for 1 1/4"-4" steel pipe SCH10/SCH40for 5"-6" steel pipe SCH10/SCH20
Max wall thickness	7mm
Operation Radius	210mm/ 8 ¼"
Packing gross weight	15kgs
Packing size	50*20*53cm

Drive Unit

Catalog Number	Description	Size(cm)	N.W (kg)
900001	1 1/4"-6" Manual Roll Groover	50*22*53cm	12.5

Standard Part

Item Number	Description		Net weight
911221	Drive roller 1 ¼"- 6" (φ42~φ168)		0.70kg
912018	Groove roller 1"-6"(φ33~φ168)		0.30kg
998036	Ratchet socket		1.50kg
998034	Tool bag		1.50kg

Since 2005, WELPING has been dedicated to enabling customer success in pipeline projects by developing, manufacturing, and selling thermoplastic welding equipment, and expanding into metal piping tools in 2017. We aim to bring industrial level design, performance and quality together, to help you build reputation.
To suit different welding applications and market requirements, we are offering different level items represented by brand WELPING, GRUVMASTER, VOLKIR and DOWELD. Brand WELPING enjoys a high reputation for exportation, benefitting from the steady product quality and performance. In order to provide our customers with more professional and dedicated services, we use the Gruvmaster brand for piping tools. The most representative product line is our series of grooving machines available in various sizes and specifications. Thanks to our experienced engineers, WELPING can help you to quickly decide OEM and ODM requirements. At the same time, we are improving and updating products line to better suit field requirements.
WELPING knows the importance of fast delivery for our customers. To better shorten production lead time, we consolidate critical production procedures into self-management, like die casting, laser cutting, metal fabrication, CNC machining, powder coating etc. Standard items and light-OEM items, WELPING can finish in around 10-15 day
Q1. Payment
A: Generally, Usual payment term ls of T/T remitance before shipment or against B/L copy.
Q2. Terms of delivery:
EXW.FOB.CFR.CIF.
Q3.Delivery time
A: 10-15 days after receiving your advance payment. The exact delivery time depends on the items and the quantity of your order.
Q4.Package:
Goods will be packed in Carton, plywood case and in pallet if required.
Q5.OEM
A: lf you can provide your samples or technical drawings. We can open the mold and produce accordingly.
Q6. Product Warranty
We Provide Standard 18 Months Warranty For Complete Machines And Tools, And Still Provide Service After Warranty.

---
