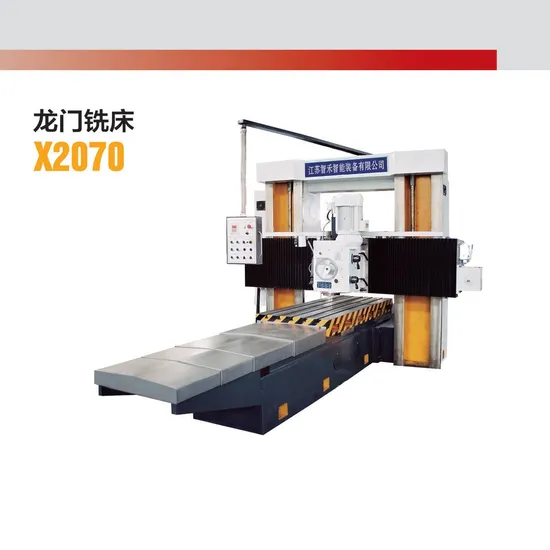

Small Type Gantry Milling Machine Gantry Type Mililing Machine (X2070) 1800X1000

Product Description

Planer milling machie x 2070
Gantry type milling machine
Mini Type gantry milling machine
This machine is suitable to process on plane.bevel,groove and so on
with various milling cutter.
It can process workpieces in high speed under heavy load for the powerful and
rigid specially.
It can add PLC system or simple CNC system as per customer request.
Good quality and reasonable price
CE and ISO9001 certificate

Description		X2070
Max processing capacity(L*W*H)	Mm	1800*1000*700
Distance between columns	Mm	1050
Size of worktable	Mm	1800*700
Number of T-slot		5
Width of T-slot	Mm	22
Power of vertical milling head motor	Kw	7.5
Number of milling head	Piece	1
Power of worktable feed motor	Kw	2.2
Speed of milling		Stepless step change
Range of the spindle speed	r/min	6/82-506
Spindle taper		7/24
Max load	Kg	3000
Weight	Kg	7000
Overall dimensions of machine(L*W*H)	Mm	5100*2700*2500

DETAIL PHOTOS
WORKSHOP
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as surface grinding machine, CNC surface grinder ,CNC Milling Machine ,Vertical Machining Center ,Drilling Machine ,gantry milling machine , CNC gantry milling machine, CNC gantry grinding machine so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in NO 370 Changjiang North Road, NANTONG ,JIANGSU ,CHINA. If you have interest to visit our factory, pls inform
me ahead, i will arrange and company you your visit period.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.

---
