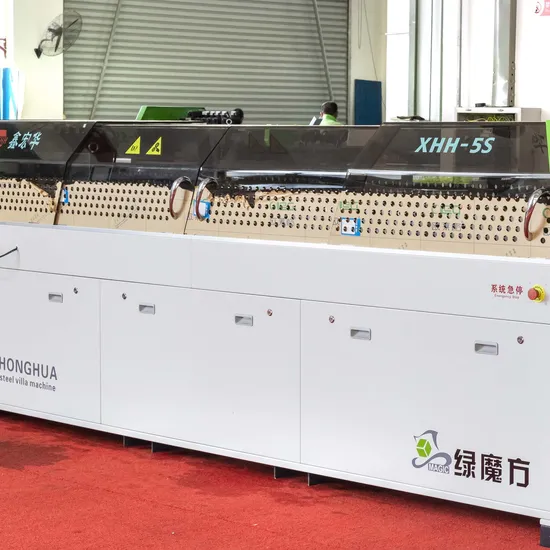

Light Gauge Profiles Formed Steel Drywall Roll Forming Machine

Product Description

1.factory Lifetime Service:offer technical support for the entire life of our machines. 2. Customized Profile:can design the profile according to customer request.
3. One-Year Guarantee Period:supply the replacement parts free of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.
Advantages of Using XHH Light Guage Steel Machine:
- Post-Punching Mould & Post-Cutting
- High Production Speed & High Precision
- Speed:4-5T/8H,2700M/H
Profile Drawing:
Post Punching Mould
XHH LGS Machine all with post punching and post cutting, which make more high precision performance on position & dimension
IPC Computer Controlling System
Lenovo Laptop IPC Computer Controlling System:shows the production online. Recognized the production file automatically.
Main Forming System
SKD-11 steel with heat treatment, plate hard chrome on the surface of rollers.
Seamless End Cut Connection
Seamless end-cut connection is a patent design of XHH LGS ROLL FORMER. The two ends of the vertical frame can seamlessly connect to the web of the bottom and top horizontal frames. So the weight of the house can be directly loaded and passed by the vertical frame, which makes the house safer.
Lower Material Wasting
Short distance between punching & cutting die able to limit the start-up material waste length at 0.2m, and end material waste length within 1 meter.
Save Cost:
(1) The length of each start-up waste of the XHH post-punching & cutting machine is about 1M; most machines on the market are pre-punching & post-cutting (other supplier), their waste material is about 8M on each start-up;

Start-Up/Change Steel Coil	8.11-12.13 Kg
5 Steel Coils/Day	40.55-60.65 Kg
Material Saved/Year	12.17-18.2 T

(2) XHH Machine steel strip width is: 170-174mm width, 10mm less than the most other machines in the market. For a 200sqm house, the total frame is around 7000m,can save 439.6-659.4kg material;

Material Thickness	0.8mm	1.0mm	1.2mm
Material Saved Per House	439.6kg	549.5kg	659.4kg

Main Accessories:

1) Main Forming Machine

2) 5 Tons Hydraulic Uncoiler

3) Servo Motor System

4) IPC Computer Controlling System (Lenovo Laptop)

5) Production Software (1set)

6) Design Software-Vertex,forever using license

7) Hydraulic Automatic Punching Device (Web/Lip Notch,Swage,Service Hole,Chamfer,Dimple,Bolt Hole)

8) Hydraulic Post-cutting Device (Material:SKD-11)

9) Automatic Printing Device

10) Run Out Table (4m)

11) Operation Manual

Main Technical Data:

1) Size	C89-5S
2) Dimension	4200*800*1100mm
3) Main Servo Motor Power	7.5KW
4) Hydraulic Motor	7.5kw
5) Forming Steps	9Steps
6) Forming Speed	4-5tons/8hours
7)Voltage	380V/50HZ/3PH
8) Effective Width	89mm
9) Material Width	174mm
10) Flange Height	38mm
11) Lip	9mm
12) Material Thickness	0.6-1.2mm
13) Tolerance for cutting and punching	±0.5mm
14) Tolerance for forming	±0.75mm
15) Control System	IPC Computer Controlling System
16) Design Software	Vertex Software
17) Material for All Roller	SKD-11 steel with heat treatment, plate hard chrome on the surface of rollers
18) Material for Shaft	SKD-11
19) Material for Puncher	SKD-11
20) Material for Cutter	SKD-11

Successful Project:

Can not find the machine you need?
Why not customize it!
We have engineers with experience more than 17 years!
The configuration is not unique, we will provide you with customized services.
