4pair Twisted Pair AWG23 Cable Network Data Communication Cables UTP CAT6A CAT6

Product Description

Data Signal Communication Cable Lan Cable- Cat5e Cat6 Cat7 Cat6A Network Cable
1.No of Pair:4Paris,8 Insulated core wire,
Specification: AWG23
0.50mm, 0.52mm,0.54mm,0.56mm
Different size and specifications can be Customized as per your requirement.
2.Structure of data lan cable:
Copper stranded conductor,
HDPE insulation,Al foil+ braiding net,
PVC Inner sheathing,
PVC or PE outer sheathing.
3.Packing:
305meter or 500meter per coil/roll or per box / drum,out packing by carton and pallet
Different packing way can be designed and made as per customer's requirement
4.Technical specificaton for UTP Cat6:

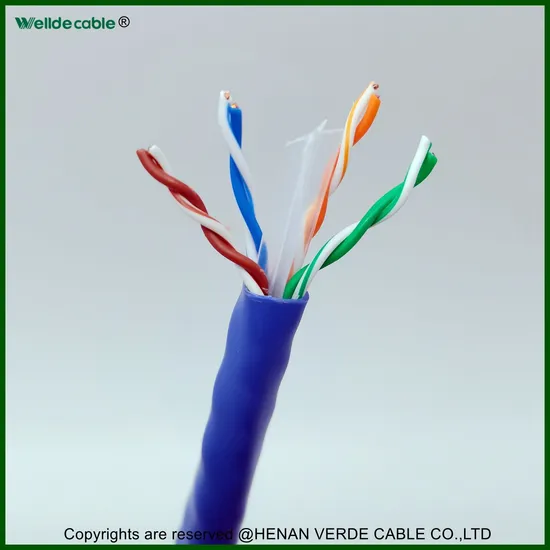

4 pair 23 AWG UTP Cat 6 cable
Type:Cat 6
Application: LAN Cable
Structure:

Conductor	23 AWG copper wire
Insulation	HDPE, white insulated wire with color marks
Pair color	White-blue/blue,white-orange,white-green/green,white-brown/brown
shielding	Non UTP type
Jacket	PVC,CMX,CM, CMR, Low smoke halogen, free for option, nominal diameter 5.8 +/- 0.5 mm
Rip cord	Without rip cord,or as per customers' option
printing	As per customers' requirements

Testing standard:
YD/T1019-2013,ISO/IEC11801,TIA/EIA-568C.2,IEC/61156-5
Main applications:
Ethernet, 10Base-T,1000Base-T4,100Base-TX,ATM,multimedia,arterial wiring
Mechanical properties:

Max pulling force	80N
Min. bent radius	65mm
Nominal weight	50Kg/Km
Work temperature	-15~+70ºC
Install temperature	+5~+40ºC
Combustion property	IEC332.1,VW1,IEC332.3 or as per sheathing types
Product length	Standard length305m,or 500mm,1000mm as per requirements

Electrical property:

Frequency (Mhz)	RL (dB)	ATT (Db/100m)	NEXT (dB)	PSNEXT (dB)	ELFEXT (dB)	Property Impedance (ohm)
0.772	19.2	1.8	76	74	70	100±15
1	20	2	74.3	74.3	67.8
4	23	3.8	65.3	63.3	55.8
8	24.5	5.3	60.8	58.8	49.7
10	25	6	59.3	57.3	47.8
16	25	7.6	56.2	54.2	43.7
20	25	8.5	54.8	52.8	41.8
25	24.3	9.5	53.3	51.3	39.8
31.25	23.6	10.7	51.9	49.9	37.8
62.5	21.5	15.4	47.4	45.4	31.9
100	20.1	19.8	44.3	42.3	27.8
200	18	29	39.8	37.8	21.8
250	17.3	32.8	38.3	36.3	19.8

5. Test report for Cat6 cable
Different Colored Cable can be Customized as per customer's requirement
If you want to know more about us and our products,pls contact us.
Linda Lee
Vice General Manager
VERDE XLPE CABLE LIMITED
HENAN VERDE CABLE CO.,LTD
Focus on Wires and Cables
Be Your Most Reliable Supplier

---
