Vacuum freeze dryer vacuum freeze drying machine with manufacture factory

Product Details

Product Description

Product Description

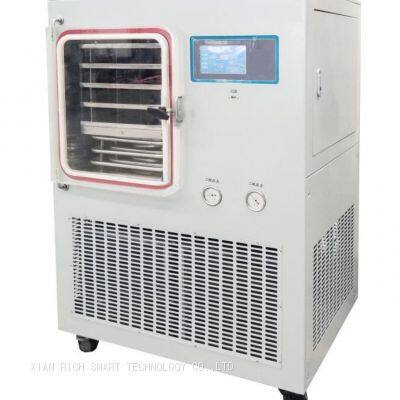

FD-series freezing drying vacuum dryer
In situ freezing drying vacuum dryer is suitable for small scale production or pilot scale test. This series is one of our patent products.This series of freezing drying vacuum dryer have heating shelf, freezing and drying process are finished in the same Chamber. freezing drying vacuum dryer changes traditional complicated operation and prevents product from pollution.
Customized Optional:
● Optional mobile phone APP.
● Optional -80℃ equipment.
● Optional external bottle hanging device, such as eggplant bottle interface or wide-mouth bottle interface.
● Optional imported brand vacuum pump to ensure more reliable operation.
● Optional vacuum degree adjustment.
● Optional eutectic point test function, convenient for exploring the freeze-drying process of samples.
Specification

	FD-20S	FD-30S	FD-50S	FD-100S	FD-20P	FD-30P	FD-50P	FD-100P
Freeze drying area	0.2 ㎡	0.4 ㎡	0.69 ㎡	1.04 ㎡	0.2㎡	0.306 ㎡	0.5 ㎡	1.152 ㎡
Condenser temperature	<-75℃
Vacuum degree	<5Pa
Water capture capacity	3Kg/24h	＞ 6Kg/24h	＞ 10Kg/24h	15Kg/24h	3Kg/24h	＞ 6Kg/24h	＞ 10Kg/24h	＞ 15Kg/24h
Cooling mode	Air cooling, ventilation, room temperature 25 ℃ or less
Shelf size	400×270mm*2+1	300×340mm*4+1	480×360mm*4+1	480×360mm*6+1	400×270mm*2+1	300×340mm*3+1	410×410mm*3+1	480×600mm*4+1
Power	3000W	4500W	5500W	6500W	3000W	4500W	5500W	6500W
Weight	260kg	400kg	600kg	700kg	260kg	400kg	800kg	1000kg
Dimension (mm)	770×750×1520	920×780×1350	1000×785×1420	1170×830×1665	770×750×1520	1260×850×1420 ＋（170 Oil cylinder）	1490×850×1620 ＋（240 Oil cylinder）	1640×1100×1630 ＋（360 Oil cylinder）
Bulk capacity Thickness:10mm	2L	4L	7L	10L	2L	3L	5L	10L
Vials loading number(pcs)	Ф12mm：1554	Ф12mm：2916	Ф12mm：4676	Ф12mm：＞ 7014	Ф12mm：1554	Ф12mm：2187	Ф12mm：3705	Ф12mm：8624
	Ф16mm：868	Ф16mm：1600	Ф16mm：2772	Ф16mm：＞ 4158	Ф16mm：868	Ф16mm：1200	Ф16mm：2058	Ф16mm：4788
	Ф22mm：440	Ф22mm：872	Ф22mm：1440	Ф22mm：＞ 2160	Ф22mm：440	Ф22mm：654	Ф22mm：1050	Ф22mm：2460

---
