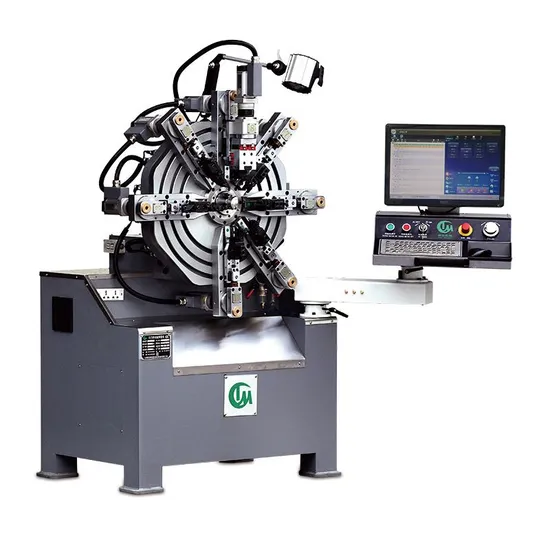

Camless Wire Forming Machine with Free Arm for Springs

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
ST25-10
Axis Count
Customized, 10 Axis
Warranty
1 Year, 1 Year
After-Sales Service
After Sales Service
Model
St25-10
Axis
10 or Customized
Advantage
Customized Design
Transport Package
Wooden Case
Specification
1200*1000*1650MM
Trademark
Might
Origin
China
HS Code
84633000
Production Capacity
200

Product Description

Might & Joint Spring Machinery--Professional for Camless CNC Spring Machine over 20 years, the leader for Camless CNC Spring Machine Industry. Company Profile:Might & Joint (Dongguan Might Precision Machinery Co., Ltd) is professional in researching, developing, manufacturing and selling Camless CNC spring machine. Its current leading products including CNC Versatile Spring Forming Machine & CNC Compression Spring Machine &Automatic 3D/2D Wire Bending machine, the wire size covers 0.15mm to 20.0mm.
Product Specification:
1. Camless spring forming machine ST25-10 combines precision CNC controlled servo-motion system and conveniences of mechanization.
2. It is suitable for various kinds of spring products through a simplified setup and programming procedure.
3. It is equipped with seven slights ,one free arm ,wire feeding ,quotation rotation.
4. We design tools for individual purposes such as bending, coiling, pitching, forming, and cutting.
5. Working spaces and angles are considered very carefully to develop portable tool holders for straight movement or supporting movement from other slides.
6. It can make various kinds of spring from wire diameter 0.2mm to 2.5mm.
Model ST25-10
Min Wire Feeding Value 0.01MM
Axes Number 10 (can be added to 16)
Max wire Feeding Value 10000.00MM
Wire size range 0.2-2.5mm
Max Wire Feeding Speed 120M/Min
Max. Feeding length unlimited
Total output power of servo motors 9.1KW
Input Power Supply 380V/50HZ/3PH
Control System self developed system
Probe No. 3
Net Length 1200MM
Net Width 1250MM
Net Height 1760MM
Net Weight 980KGS
