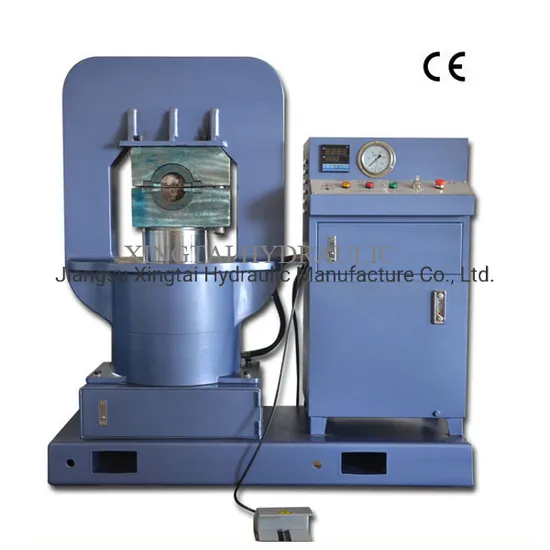

GT steel wire rope pressing machine is a new generation of wire rope rigging processing equipment, which is developed with advanced technology and processes by Xingtai Group. GT pressing machine is with compact institution, easy to operate, high efficiency, beautiful appearance. The machines have national patent certificate(ZL 2007 2 0195552. 8.) and are certificated by EU standards-CE.
Pressed slings are with high strength conclude and safe load. Comparing with conventional splicing technology, pressing machine can greatly improve the processing efficiency and save wire rope. Xingtai pressing machine have widely used in metallurgy, mining, ports, railways, electricity and other industries. Xingtai machines have exported to UK, Australia, the Netherlands, Malaysia, Poland, South Africa, Thailand, Russia, Latvia and so on.
| Product Specification |
| Mode No. | GT-500T |
| Max press power (KN) | 5000 |
| Max wire rope diameter in one pressing (mm) | Φ32 |
| Max wire rope diameter in multi-pressing (mm) | Φ42 |
| Power (KW) | 4 |
| Max working pressure (Mpa) | 56Mpa |
| Max piston movement (mm) | 100 |
| The up speed of piston (mm/sec) | 4.5 |
| The down speed of piston (mm/sec) | 8 |
| Total length (mm) | 1500 |
| Total width (mm) | 610 |
| Total height (mm) | 1500 |
| Net weight (kg) | 2000 |
| Accessory | Seals,key,use manual |
| Package | Standard export package |
| Video | Yes |
| Delivery time | 15 days |
| Features |
| 1. Overall basket design, small size, high strength, good concentricity, pressed slings with smooth surface |
| 2. The body of swaging construction is manufactured from one single block construction that ensure stress uniform, high strength, long service life. |
| 3. Xingtai use latest materials, Combined seals and ultra-wearable guide ring between the the piston rod and the cylinder, so that the cylinder is with higher sealing performance, safe, reliable and durable |
| 4. Round mold design and automatic positioning is easy to change different molds. |
| 5. Piston can be stopped any position. |
| How to operate |
| 1. Fix mould, tight the bolts on the left of both tool set; |
| 2. Adjust pressure according pressure table shows on machine; |
| 3. Put sleeve/ferrule with wire rope on the middle of mould vertically; |
4. Operate pedal rise switch, the piston will rise and rising pilot lamp lights; Auto-stop when reach adjusted presure;
operate down switch and take out pressed wire rope; |
| After-sales services |
| 24 hours around the clock & 12 months warranty |
| Life-long maintenance service for the product |
