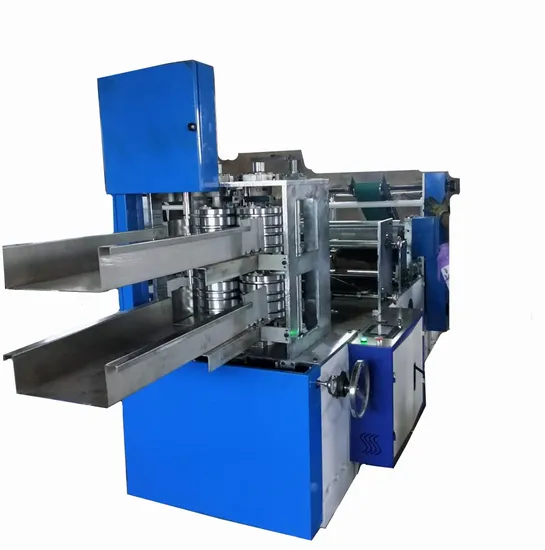

High Speed Double Channel Napkin Serviette Paper Folding Machine

Product Description

Video : https://saninternational.en.made-in-china.com
1.Description
Embossing Napkin Folder is used to emboss,cut and fold the slit paper into square or rectangular napkin.The machine is equipped with electric counter ,which marks the sheet counts of each bundle required, making it easier for packaging. The embossing rolls can be heated by the heating elements, which makes clearer and better embossing patterns. The machine can be set to produce napkin of 1/4,1/6/,1/8 etc folding to the customer's requirement.
2. Technology Specifications

Finished products unfolded size(mm)	230*230-460*460
Folded size(mm)	115*115-230*230 ±2mm(adjustable)
Raw material diameter(mm)	≤1000
Raw material core diameter(mm)	76.2
Speed	0-140m/min
Embossing bottom roll(mm)	Felt roll,rubber roll,paper roll
Counter	Electronic counter
Power	2.2-4kw
Dimension(mm)	5000*1100*1800mm
Weight	1050kg-2500kg
Transmission System	Timing belt Gear box
Calendering	Steel to steel, steel to rubber
Automatic Jumbo roll loading	option

1.Tissue paper feeding unit:
1) One set paper stand, flat belt for feeding paper (pneumatic),
2) Pneumatic paper-mounting unit
2. Embossing unit:
1) One set steel roll against steel roll (the pattern as per customer's requirement.)
2) Pneumatic pressing unit
3) Heating device
3. Folding unit:
1) Longitude and transverse folding unit
2) Counting function
3) Folding type: 1/4 fold,1/6 fold,1/8 fold (as per customer's requirement)
4) Capacity: 0-140 m/min
Our Service♥ ⇒One year guarantee for whole machine, all life follow-up service.
⇒24 hours technical support by email.
⇒Technicians overseas set-up and workers training.
⇒User- friendly English for operation system.

After-sales services
♥One year guarantee for the whole machine, all life follow-up service.
♥24 hours technical support by email.
♥Technicians oversea set-up and workers training.
♥User- friendly English for operation system.
Packaging &Delivery
Packaging Details: Stretching film packing
Delivery Detail: Shipped in 60 days after payment
PACKING IS SEAWORTHY AND SAFE.
Exhibition:
F&Q
Q1: What is the warranty for the machine?
A1: For the machine, we offer one year warranty. If any quality problems occurred under normal conditions during this period, we will take on the costs of maintenance and replacement and other related costs.
Q2: How to operate and maintain the machine?A2: First, we will provide a professional and detailed manual to you with the machine; Second, we will test and debug the machine into the best condition before shipment for you. Last but not least, we also provide abroad technical training services and online expertise consulting.
Q3: How to get raw material or auxiliary material for the machine?
A3: Our company has over ten-year experience in this industry, we have accumulated various contact information of upstream& downstream firms in fields of raw material, auxiliary material and package for the products. We believe that our professional team can always offer you the best solutions.
Q4: How to find the matching accessories or wearing parts of the machine?
A4: We offer free replacement for wearing parts during the warranty period. Clients can also get the parts from us with a favorable price if it is out of the warranty.

---
