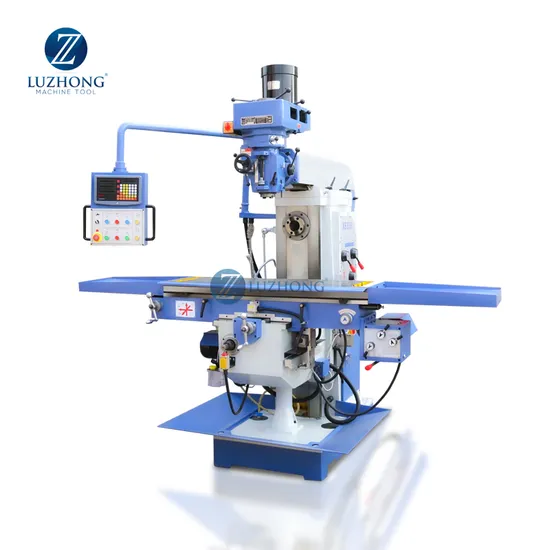

Universal Horizontal and Vertical X6336 Metal Turret Milling Machine With Power Feed

Product Description

Universal Horizontal and Vertical X6336 Metal Turret Milling Machine With Power Feed Product Description
Product Parameters
Product main technical specifications:

Specifications	Units	X6336
Spindle taper		7:24 ISO40(V);7:24 ISO50(H)
Horizontal spindle center to table surface	mm	0-380
Horizontal spindle center to cross beam surface	mm	230
Spindle speed range	r/min	(16 steps)66-4540(V) (12 steps)60-1800(H)
Table size	mm	1500×360
Table travel(X/Y/Z)	mm	1000/320/350
Table X/Y axis auto feed speed	mm/min	22-555(8steps)740(rapid traverse)
Table vertical lifting speed	mm/min	590
T slot(number/width/space)	mm	3/18/80
Cross beam travel	mm	500
Main motor power	kW	3.7(V);4(H)
Table auto feed motor power	W	750
Table lifting motor power	W	1100
Coolant motor power	W	90
Coolant liquid	L/min	25
N.W./G.W.	kg	2340/2500
Machine size	mm	2220x1790x2360

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
