Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
System
Syntec/Mitsubishi/Fanuc/Siemens
Name
Mold Metal Cutting CNC Vertical Machining Center
X/Y/Z Speed
30/30/30 M/Min
Tool Alignment
Auto Tool Checking
Repeat Precision
+-0.003mm
Max Working Speed
10000mm/ Min
Applicable Industries
Machinery Repair Shops, Manufacturing Plant, Mold
Type
CNC Vertical Machining Center
Transport Package
Sea Worthy Plywood Case
Specification
4500*2900*3100
Origin
Dongguan City China Prc
Production Capacity
2000PCS/Year
Product Description
VMC1370 Vertical Machining Center with High Precision Milling Capacity for Mold,Mold Base,Hardware,Auto Parts Processing
Product Description

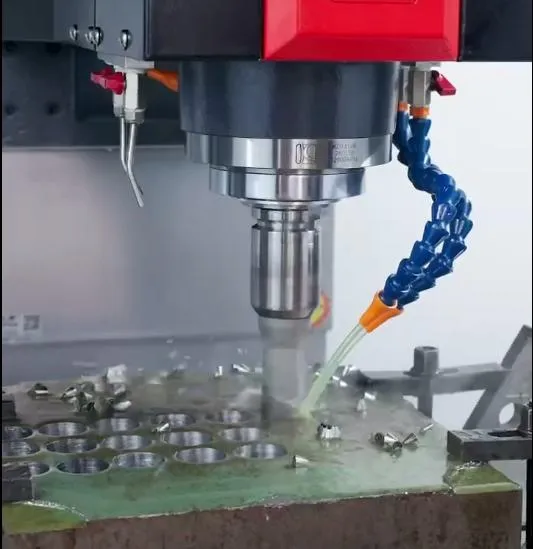

Fixed-column type vertical machining center machine tool adopts mechatronics design, beautiful appearance, and can be used for precision cutting. After the workpiece is clamped once, the machine tool can automatically and continuously complete the processing of various processes such as milling, drilling, boring, expanding, reaming, object, and tapping. It is suitable for multi-variety processing of complex parts such as dry, medium and small boxes, plates, discs, bright bodies, etc. It is widely used in auto parts, valves, construction machinery, IT equipment, optical equipment, medical equipment and aerospace, etc. industry.
Product Paramenters
| Item | Unit | VMC-1160 | VMC1270 | VMC1380 | VMC1580 |
| X/Y/Z axis travel | mm | 1100/630/600 | 1200/700/700 | 1300/800/800 | 1600/800/700 |
| Distance from spindle end to work table | mm | 150-750 | 100-800 | 102-920 | 100-800 |
| Distance from spindle center to column guide surface | mm | 690 | 780 | 800 | 880 |
| Table size (length X width) | mm | 1300X680 | 1400x700 | 1400x800 | 1600x800 |
| T-slot (number-size-pitch) | mm | 5X18X110 | 5-18-125 | 5-18-125 | 5-18-125 |
| Allowable load | kg | 1000 | 1200 | 1200 | 1400 |
| Spindle taper hole - outer diameter | No. | BT40 | BT50-Φ190 | BT50-Φ190 | BT50-Φ190 |
| Spindle maximum speed | r/min | 12000 | 6000 | 6000 | 6000 |
| Spindle motor maximum power | kw | 11/15 | 18.5 | 18.5 | 18.5 |
| X/Y/Z axis rapid traverse speed | m/min | 30/30/30 | 30/30/30 | 30/30/30 | 30/30/30 |
| Maximum chip speed | mm/min | 10000 | 10000 | 10000 | 10000 |
| Tool magazine (option) | | Disc magazine | Disc magazine | Disc magazine | Disc magazine |
| Number of tools | T | 24 | 24 | 24 | 24 |
| Positioning accuracy | mm | ±0.005/300 | ±0.005/300 | ±0.005/300 | ±0.005/300 |
| Repeatability | mm | ±0.003 | ±0.003 | ±0.003 | ±0.003 |
| Machine weight | kg | 9000 | 11500 | 12500 | 13500 |
| Dimensions (L/W/H) | mm | 3100/2550/2550 | 4500/2900/3100 | 4500/3500/3100 | 5200/2900/3100 |
| | | | | | |
>>
