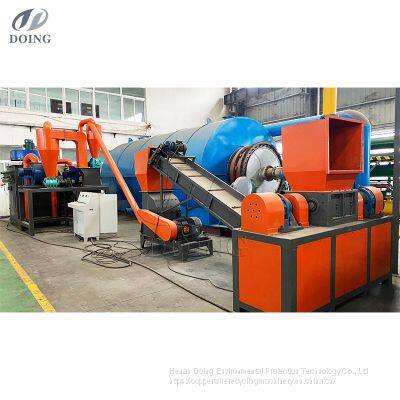

Copper and aluminum scrap radiator recycling plant is a set of professional crushing and separation line, which can be used to process all kinds of scrap radiators from air conditioner, car water tank, cold storage, etc. And it can easily separate copper, aluminum and iron. At the same time, copper and aluminum scrap radiator recycling plant can make the waste resources reused again, supported by government in each countries.
Here, we’ll introduce the working process of copper and aluminum scrap radiator recycling plant in details, for you to better understand.
Step 1: Shredding and crushing
Shredder will shred the scrap radiator into 5-7cm particles, that’s a pre-cut process. Then the crusher will further crush the materials into 2-3cm, here the copper and aluminum will be crushed separately. And there is screen in the bottom of crusher, so it can control the size of copper and aluminum after crushed, thus to better for next processing of separation.
Step 2: Negative-pressure baffle separation
Negative-pressure baffle separation system is our unique and special technology. It can separate most of aluminum out first, thus to improve efficiency in the whole process. Furthermore, it will be benefit for air separator to separate the left aluminum and copper then in the following process.
Step 3: Magnetic separation
As we know, magnetic separation process is to remove iron from the other metals, thus to protect the final products value.
Step 4: Air separation
At last, air separation process will separate the left aluminum and copper by different gravity. Finally the separation rate could be reaching to 99%.
So after processed by copper and aluminum scrap radiator recycling plant, the final products you can get will be pure copper, pure aluminum and pure iron, which can be sold directly to earn profit after recycling.
Here, I summary the features about DOING copper and aluminum scrap radiator recycling plant. Hope it can help you to choose suitable equipment.
1. Can process almost all kinds of radiators and no need pretreatment;
2. 99% high separation rate to separate copper, aluminum and iron out;
3. With negative-pressure baffler separator technology, improve the accuracy of separation in the whole line;
4. With sealed wind conveyor and pulse dust collecting system, no dust fly around;
5. Fully automatic working, easy to operate.
If you have other special requirement, you can contact us for more details. Doing Company has engineers team, who can customize for you.
>>
