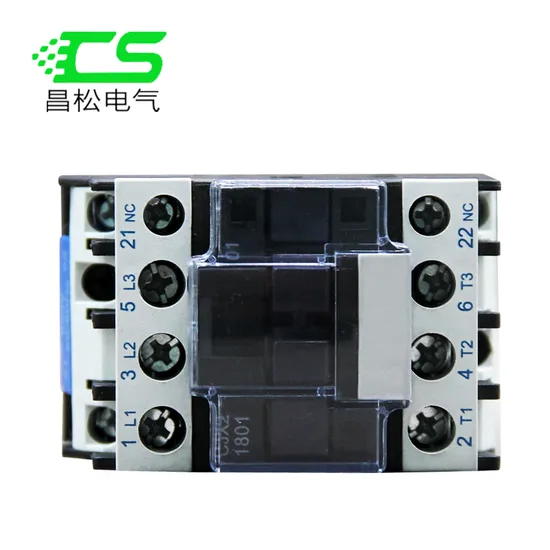

Contactor LC1 Cjx2 Series AC Contactor 220V Coil AC Contactor Factory

Product Description

CJX2 series AC contactor are used for controlling 3-phase motors and generally for controlling power circuits,and for many other applications such as isolation, capacitor switching and lighting.

Model			CJX2-09	CJX2-12	CJX2-18	CJX2-25	CJX2-32	CJX2-40	CJX2-50	CJX2-65	CJX2-80	CJX2-95
Number of the contacts			3P+NO / 3P+NC					3P+NO+NC
Rated conventional heating current (A) AC-1			20	20	32	40	50	60	80	80	110	125
Rated operational current (A)	400(380V)	AC-3	9	12	18	25	32	40	50	65	80	95
		AC-4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
	690(660V)	AC-3	6.6	8.9	12	18	21	34	39	42	49	49
		AC-4	1.5	2	3.8	4.4	7.5	9	12	14	17.3	21.3
Rated insulation voltage V( AC)			690	690	690	690	690	690	690	690	690	690
Power of controlled 3-phase cage motor (AC-3)	kW	230(220)V AC	2.2	3	4	5.5	7.5	11	15	18.5	22	25
		400(380)V AC	4	5.5	7.5	11	15	18.5	22	30	37	45
		460V AC	4	5.5	7.5	11	15	22	25	37	45	45
		690(660)V AC	5.5	7.5	9	15	18.5	30	33	37	45	45
	hp	200V AC	3	5	7.5	7.5	10	15	15	20	25	30
		240V AC	3	5	7.5	10	15	20	20	25	30	30
		460V AC	5	7.5	10	15	20	25	30	40	40	50
		600V AC	5	7.5	10	15	20	25	30	40	40	50
Operating frequency (operations/h)	Electrical	AC-3	1200	1200	1200	1200	600	600	600	600	600	600
		AC-4	300	300	300	300	300	300	300	300	300	300
	Mechanical
Electrical life (1*104 operations)	AC-3		100	100	100	100	80	80	60	60	60	60
	AC-4		20	20	20	20	20	15	15	15	10	10
Mechanical life (1*104 operations)			1000	1000	1000	1000	800	800	800	800	600	600

AC coil	Coil voltage (V) (50Hz,60Hz,50/60Hz)		24,36,42,48,110,127,220,230,240,380,400,415,440,480,600
	Operation range	Operation voltage	(85%~110% ) Us
		Drop-out voltage	(20%~75% ) Us
Coil power	50Hz	In-rush (VA)	70	110	110	110	200	200	200	200	200
		Sealed (VA)	8	11	11	11	20	20	20	20	20
	60Hz	In-rush (VA)	80	115	115	115	200	200	200	200	200
		Sealed (VA)	8	11	11	11	20	20	20	20	20
	Power (W)		1.8~2.7	3~4	3~4	3~4	6~10	6~10	6~10	6~10	6~10

---
