High Quality CNC Lathe for Turning Shaft, Drum, Pipe, Railway Wheel

Product Description

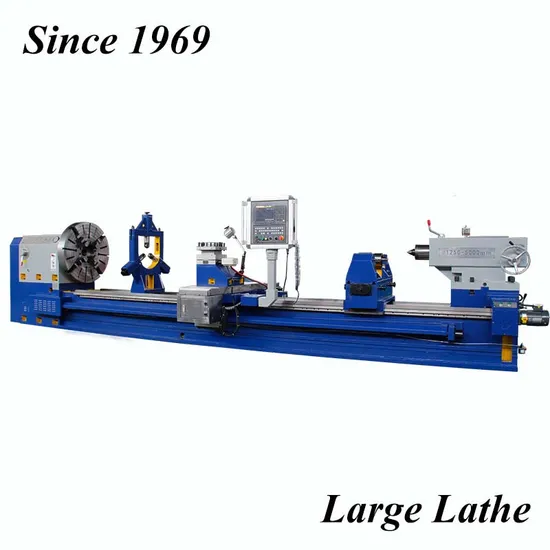

Professional CNC Lathe
For Machining railway wheel repair, Auto Wheel, Bearing, Flange,Cylinders, Long Shaft, Railway Parts,Wheel Hub Turbine,etc
Our special features, Why choose our CNC Lathe.
1. Established in 1969 as a millitary enterprise.
2. We are specialized in making customized lathe , Which helps customer to invest the best and cheap price but get the best lathe machine with high performance. Such As Hydraulic Tailstock, auto-centerchuck with 4 jaws used for turning square type shaft,. etc.
3. We have our own foundry and machining factories which can control the quality very well.
4. After order confirmation, we shall issue both 2D & 3D drawings for the lathe machine.
5. Professional Machining equipment, inspection device and casting device like quenching furnace, 12 meters gantry grinding machine, ultrasonic default detector. etc.
Our Principle : Maximize Customer's Profitability under the minimum invest cost.
Application: CNC Facing lathe is suitable for high-speed steel and carbide cutting tool to implement coarse and fine stock removing and cutting on the outer cylindrical surface of roller of different materials; it also can be used for rough and finish machining of other shaft parts.

2. Technical Parameters of CNC Lathe Machine

Name		CK61100	CK61125	CK61160	CK61200	CK61250
Description	Unit
Max. Swing over bed	mm	1000	1250	1600	2000	2500
Max. Swing Over the skateboard	mm	600	800	1200	1500	1800
Max. Weight of Work-piece	T	1	1	2	2	3
Max. Length of Work-piece	mm	1500-3000	1500-3000	1500-5000	1500-8000	1500-8000
Gears of Spindle Speed	/	Infinitely Variable Speed/step-less speed
Range of Spindle Speed	r/Min	10-300	10-200	10-160	10-160	4-80
Chuck Diameter	mm	800	1000	1250	1600	2000
Bearing Diameter of Main Front Shaft	mm	190	190	220	220	300
X,Z-Axis Feed Range	mm/Min	0-3000
Horizontal Stroke	mm	500	650	800	1000	1250
Longitudinal Stroke	mm	1500-3000	1500-3000	1500-5000	1500-8000	1500-8000
Main Driving Motor	Kw	Variable Frequency 11Kw-4	Variable Frequency 15Kw-4	Variable Frequency 22Kw-4	Variable Frequency 30Kw-4	Variable Frequency 45Kw-4

Rermarks:
1. The above 5 models of Horizontal Lathe Machine are the standard configurations, we can also design and manufacture customized lathe machines according to the user's workpiece features.
2. This series horizontal Lathe Machine have been exported to Norway, Thailand, Romania, Iran, Russia, Chile for machining railway parts, automobile parts, mining and metallurgy, shipping building, wind power and other machinery industry.
3. Package and shipment
1. Make Anti-rust Oil/Anti-Corrosive Oil for the whole machine, then wrapping protective film
2. Wooden Box Package , Vacuum Package is also available according to customer's special request.
3. After-Sale Service &Maintenance:
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!

---
