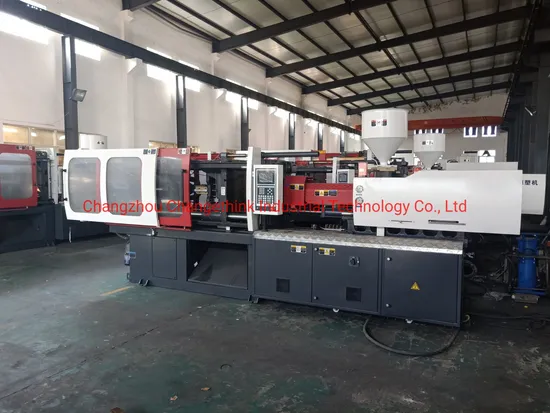

Lty-900 Servo Plastic Injection Molding Machine for PP PE Material

US$18,000.00 1 SET (MOQ)

Basic Info.

Model NO.
LTY-900
Type
Plastic Product Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Transport Package
Wrap Film Packing Into The Container
Specification
90T
Trademark
LOYALTY
Origin
China
HS Code
8477101090
Production Capacity
1000sets/Years

Product Description

LTY900
A B C D
INJECTION UNIT
SCREW DIAMETER mm 30 32 35 38
SCREW L/D RATIO L/D 23.5 22 20.1 18.5
SHOT VOLUME(THEORETICAL) cm3 117 133 158 187
INJECTION WEIGHT(PS) g 106 121 144 170
INJECTION RATE g/s 71 81 97 115
INJECTION PRESSURE MPa 230 203 170 144
SCREW SPEED rpm 240
CLAMPING UNIT
CLAMP FORCE kN 900
OPEN STROKE mm 320
SPACE BETWEEN TIE BARS(W*H) mm 360x360
MAX.MOULD HEIGHT mm 350
MIN.MOULD HEIGHT mm 150
EJECTOR STROKE mm 90
EJECTOR FORCE kN 30
OTHER
MAX.PUMP PRESSURE MPa 16
PUMP MOTOR POWER kW 11
HEATING POWER kW 7.55
MACHINE DIMENSION(L*W*H) m 3.81x1.19x1.79
OILTANK CUBAGE L 180
MACHINE WEIGHT t 2.9
