Rubber Powder Mixer

Product Description

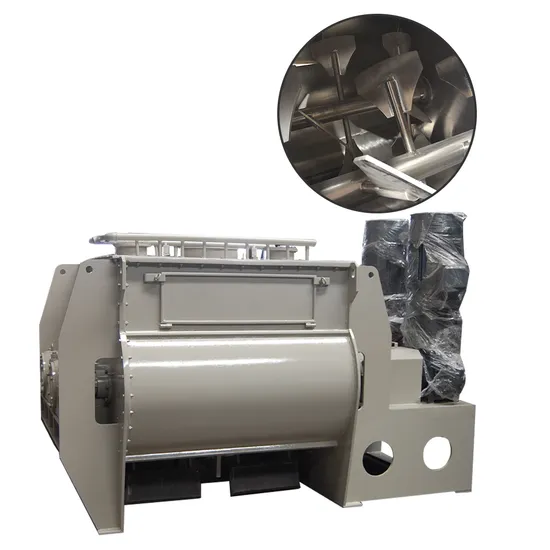

Double Shaft Paddler mixer
WORKING PRINCIPLE:
Double shaft paddle mixer is a batch mixer with two counter-rotating shaft that are equipped with ten paddles
they overlap each other following the driven unit, Blades generate centrifugal force during high speed rotation, spilling the material to the upper part in the barrel then material falling down( the vertex of material is in a so called instant non-gravity state). Driven by the blades material is mixed back and forth: also sheared and separated by the meshing space between the twin shafts ast and evenly mixed in the end
When mixing:
1. The horizontal axes make the material move up and down.
2. Rotation at opposition direction of the double axes makes materials exchange from left to right.
3. Paddle stirrers push material at angle 45 to move circularly in the cylinder, and the materials can reach good mixing effect under the movement of radial and axial orientation
1.Flexible material selection
Material can be carbon steel, manganese steel, ss304, 316L and 321;
besides, different material can also be used in combination between the part contact with the raw material and the parts don't contact with the raw material.
2.Reliable driven unit
The four different driven combination launched by Shengli Co. can meet different requirements of two synchronous gear box, double output gear box
double synchronous planetary gear box, and the combination of reducer and chain.
The combination of Sk-series double synchronous gear box is the best configuration for double shaft paddle mixer.
3.High efficiency mixing unit
According to the properties of raw materials, the paddle can be adjusted and designed accordingly
for example adding wear-proof plate, Teflon plate, and saw-toothed paddle.
Double shaft paddle mixer can be also added high speed breaking bar inside the barrel, scattering material following its flow.
4.Excellent discharging unit
Standard valve for double shaft paddle mixer is twin pneumatic planar flap valves.
When close the valve, the planar flaps match the mixing barrel perfectly, this makes no mixing dead zone and better mixing effect
5.Powerful auxiliary components
Mixer is frequently equipped with many auxiliary components, like steam coil jacket, honeycomb pressure jacket, medium circulation jacket
sampling valve, high speed chopper, temperature sensor, weighing system, dust removal system and so on.
Different heat medium requires different jacket, it can be used for heating and cooling, while, the temperature should be within 250 Celsius degree.
6.Data sheet

specification	WZL-0.3	WZL-0.5	WZL-1	WZL-2	WZL-3	WZL-4	WZL-6	WZL-10	WZL-15	WZL-20
working capacity(m³)	0.18	0.3	0.6	1.2	1.8	2.4	3.6	6	9	12
working capacity(kg)	200	300	600	1200	1800	2500	3600	6000	9000	12000
speed(RPM)	60	60	53	43	43	35	35	29	22	18
power(KW)	5.5	7.5	11	22	30	37	44	60	90	150
weight	650	900	1300	2300	2800	3400	5000	6000	8500	12000
length	1600	1800	2400	2800	3200	3400	3700	4000	4600	5200
width	850	1000	1400	1700	1950	2000	2200	2600	3100	3500
height	950	1100	1800	1950	2000	2000	2300	2600	2800	3000

7.The production blending line like:
Feeding machine: manual feeding, crane big bag feeding, screw conveyor feeding, vacuum feeding, bucket elevator etc.
Mixing machine: doubel ribbon blender, single shaft mixer, mixing machine etc.
Filling machine: storage silo, screw conveyor, packing machine, big bag etc.
Simple system as dry ingredient bulk production mixing line like:
8. About us
Shanghai Shengli specializes in mixing equipment research, design, manufacture, sales and service. In past 26 years, we go deeply mixing processing filed and related technology, devote to research different kinds of mixer, modify and perfect existing mixing system, and develop new-type mixer equipment
Under working experience, we developed mixer processing machinery independently. With modern processing method, strict product management, high quality ,and professional service team, Shengli is becoming the preferred brand. We will keep researching new technology, solving mixing problems, providing more suitable mixer, promoting upgrades, and creating maximum value for customers.

---
