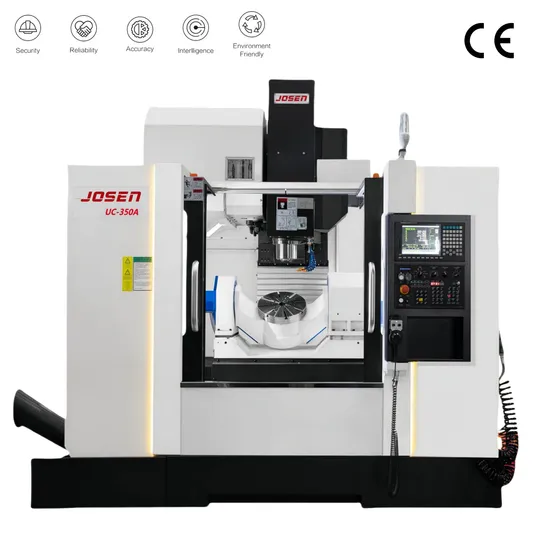

Josen Provide Five-Axis Machining Center UC-350A Features a Durable Worktable for Heavy-Duty Machining

Product Description

VMC350 Siemens Controller CNC Vmc Machine Milling 5 Axis CNC Milling CNC Machine Price
Product Description
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional.
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc. Basic Info

Number	Name	Number	Name
1	FANUC 0I-MF CNC controller	10	Chip pan and water tank
2	Full cover shroud	11	Transformer
3	Automatic lubricant system	12	Spindle air curtain dust protection system
4	Ground bolts and spacers	13	Mechanical, electrical and operating instructions
5	Tool-box	14	Rigid tapping
6	Working light	15	Electrical box heat exchanger
7	Warning light	16	Machine cleaning water gun
8	M30 automatic power-off system	17	Three-axis slide telescopic shield
9	Portable chip blowing air gun	18	30-blade arm type tool magazine

Can be loaded into standard containers and will save at least $2000 in shipping costs. Product Parameters

description/machine model	Unit	UC-350A
Itinerary
X-axis travel	mm	700 (total stroke up to 780)
Y-axis travel	mm	520
Z-axis travel	mm	550
Distance from spindle nose to table surface	mm	40-590
Workbenches
Table size (X*Y)	mm	∅ 350
Table T-slot dimensions (width*number of slots*spacing)	mm	12/8* 45 degrees even
Maximum load capacity of the table	kg	100
Spindle
Spindle motor (continuous/30 minutes)	kW	11/16.5
Spindle speed	rpm	10-10000
Spindle inner taper bore		BT40
Three axes
X/Y/Z axis motor	kW	5.9/5.9/5.9
Feed rate
Rapid feed rate (X/Y/Z)	mm/ min	36000/36000/36000
Fastest cutting feed rate	mm/ min	1-10000
Tool change system (optional)
Tool magazine capacity (standard/optional)	set	24/30
Tool magazine form		Tool-arm type
Latin form		MAS-P40-1(45°)
Maximum tool diameter of adjacent tools	mm	∅80
Maximum tool diameter of the empty neighboring tool
	mm	ø150
Maximum tool length	mm	300
Maximum tool weight	kg	8
:: Machine tool accuracy
Three-axis laser positioning accuracy (JIS6338 measurement method)
Positioning accuracy (full stroke)	mm	±0.005
Repeatable positioning accuracy (full stroke)	mm	±0.003
Systems
Controller		New Generation 220MA-5
Hydropneumatic systems
Tank capacity	liter	250L (side discharge)
pneumatic pressure requirements	kg/cm²	6
Electricity
electrical specifications		AC380±10%, 3-phase, 60Hz/50Hz
Electricity demand	KVA	30
Other
Floor space (L*W)	mm	3450*2825
Machine height (max.)	mm	3040
machine weight	T	6.5

Detailed Photos
Company Profile
Certifications
Our Advantages

Packaging & Shipping

FAQ

1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
A:We provide one year warranty, if any parts broken, we will send you a new one for free.
7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.

---
