Shenzhen UL3266 High-Quality Building Wires XLPE Jacket Electrical Wires

Product Description

3266 Wear Resistance Moisture And Heat Resistance XLPE Jacket Building Flexible Electrical Wires
SPECIFICATION
XLPE HOOK-UP WIRETemperature Range : -60°C~ +125ºC
Nominal voltage : 600V
O.D.Tolerance : ±0.1mm
Testing Voltage : 2500V
Conductor : Tinned Copper
Insulator : XLPE
Colours : white-blue-red-black-brown-yellow-green-yellow/green.
They are the same with the inner fixed wires for home appliance,headlamp,mechanical and electrical machine,etc.

Part No	AWG	Stranding NO. × φmm	Diamete r mm	lnsulato r thick mm	Over diameter mm	Packing Mt/coils
3266	12	65*0.254	2.37	0.45	3.2	305
	14	41*0.254	1.9		2.7	305
	16	26*0.254	1.5		2.4	305
	18	41*0.16	1.17	0.38	2.1	610
	20	21*0.18	0.97		1.8	610
	22	17*0.16	0.78		1.6	610
	24	11*0.16	0.61		1.4	610
MARKING :E358921 RU AWM 3266 VW-1 125ºC 600V NO.AWG Or cRU AWM 1 A 125ºC 600V FTI N0 .AWG HUAYUANXIN

Product Description
Electric Wire And Cable
Electric wires and cables are a collection of one or more insulated wires, and their function is to transmit electrical energy and signals. Wires and cables are widely used in power systems, communication systems, industrial automation, household appliances, and other fields. Their main function is to transmit electrical energy from power stations to user ends or to transmit signals between electronic devices. The design and manufacture of wires and cables need to consider multiple factors such as current capacity, voltage level, mechanical strength, and environmental adaptability.
Wires and cables can be classified according to different standards. According to the conductor material, they can be divided into copper wires and aluminum wires; according to the insulation material, they can be divided into PVC insulation, rubber insulation, cross-linked polyethylene insulation, etc.; according to the structure, they can be divided into single-core cables, multi-core cables, coaxial cables, etc. In addition, there are special-purpose cables, such as high-temperature resistant cables, waterproof cables, shielded cables, etc., which are designed according to different use environments and requirements.The manufacturing process of wires and cables includes multiple steps such as conductor twisting, insulation coating, and sheath molding. The quality of materials and process parameters need to be strictly controlled during the manufacturing process to ensure that the performance of the cable meets the standard requirements.Product Parameters

SPECIFICATION
Product Name	XLPE Jacket Electrical Wire
Keywords	Electrical Wire Cable
Tensile Strength	≥10.3MPa
Elongation At Break	≥100%
Low Temperature Bending	-10ºC±2ºC/4H, The Sample Surface B11Is Qualified If There Is No Crack
Processing Performance	Applicable To All Conventional Wiring Harness Processing Technology
Rated Temperature	80ºC
Rated Voltage	300V
Dielectric Withstand Voltage	2.0KV, No Breakdown In 60 Seconds
Average Insulation Thickness	0.40mm
Minimum Insulation Thickness	0.33mm
Finished Outer Diameter	1.10-2.30mm
Reference Standard	UL758-2019, UL1581-2019
Application	Internal Wiring Of Electronic, Electrical And Equipment
MOQ	Low MOQ
Sample	Accept
OEM & ODM Custom	Accept
*All Product Parameters Are Subject To The Actual Product Received.

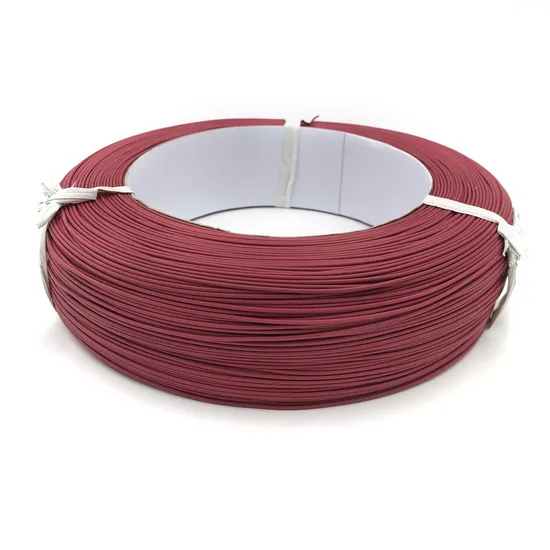

Detailed Photos
HIGH CONDUCTIVITY
Using high-purity copper or aluminum as conductor materials ensures that wires and cables have excellent conductivity, reduce power loss, and improve energy transmission efficiency.SAFETY PERFORMANCE
The design of wires and cables complies with international safety standards, has overload protection and short-circuit protection functions, reduces the risk of electrical fires, and ensures personal and property safety.DURABILITY
The use of high-quality insulation and sheath materials makes the wires and cables have excellent wear resistance, chemical corrosion resistance, and environmental aging resistance, extending the service life and reducing replacement costs.EASY TO INSTALL
The structural design of wires and cables fully considers the convenience of installation, has good flexibility, is easy to wire in narrow or complex environments, and reduces the difficulty and time of installation.VARIOUS SPECIFICATIONS
Provide wires and cables of various specifications and models to meet the needs of different voltage levels, current capacities, and application scenarios, and provide customers with customized solutions.
FAQ
Q1: Are you a factory or a trader?
A2: We are a factory.
Q2: How to order?
A2: Send us an inquiry → Receive our quotation → Negotiate details → Confirm samples → Sign contract/deposit → Mass production → Goods are ready → Settle balance/delivery → Further cooperation.
Q3: How about a sample order?
A3: Samples are available for you. Please contact us for details.
Q4: How long is the delivery time?
A4: The delivery time depends on the quantity you ordered.
Q5: My package is missing products. What should I do?
A5: Please contact our support team and we will confirm your order based on the package contents. We apologize for any inconvenience.
Q6: How to confirm payment?
A6: We accept payment by T/T and PayPal, other payment methods are also acceptable, please contact us before paying with other payment methods.

---
