Product Details
Product Description
Product Description

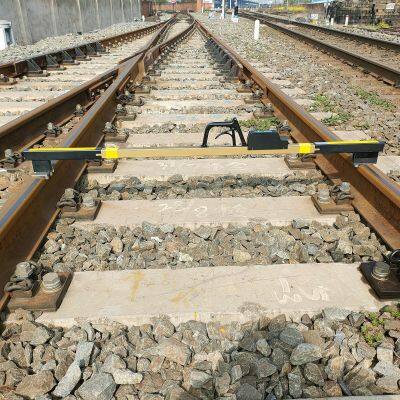

Digital Track GaugeDigital switch Track Gauge can directly read the measurement values of railway track gauge, super elevation , check rail gauge and back to back distance,flangeway clearance through microelectronics, embedded and sensor technologies and OLED display screen.
Features1. Large LED backlit display: especially suitable for day outside and dark night 2. Quick calibration operation: simple measurement process 3. Large capacity battery:long standby time 4. Accurate measurement:keep long-term stability 5. Temperature compensation :working temperature is -30~+55℃ 6. Insulated design 7. Anti-electromagnetic interference 8. Waterproof:could use in rainy day 9. power saving function: no operation within 15 minutes, the system will automatically shut down. 10. Approval by CRCC , CE certificate.
Specification
Model(1435mm)
| GJC-TJG1
|
Track gauge(mm)
| 1384-1470
|
Gauge rail check gauge(mm)
| 1364-1450
|
Guard rail face gauge(mm)
| 1344-1430
|
Superelevation measuring range(mm)
| -200~+200
|
Flangeway Clearance(mm)
| 20-107
|
Superelevation division value(mm)
| 0.10
|
Track gauge division value(mm)
| 0.1
|
Track gauge max indication error(mm)
| ±0.25
|
Superelevation error(mm)
| ±0.45
|
Application rail line
| railway speed less than 250km/h
|
Detailed Images
Package & Delivery
pe bag+pe foam+paper carton, 5units/carton , carton size:168*26*28mm G.W: 18KG
>>
