US$1.50-2.20
|
300 kg
(MOQ)
|
Basic Info.
Model NO.
JM SANITARY ACRYLIC
Water Absorption
0.2%~0.3%
Contraction Percentage
<0.4%
Tensile Strength
51~80MPa
Jumei Quality
World-Class Cast Acrylic Sheets Manufacturer
World-Class Cast Acrylic Sheets Manufact
Jm Santiary Cast Acrylic Sheet
Company Manufacturing History
More Than 20 Years
Thickness Tolerance
+-0.3
Raw Material
100% Virgin MMA
Modulus of Elasticity
3100MPa
Customized
Size and Colour Can Customized
Certificate
ISO9001 2015, CE, RoHS, Reach, De
Engineer Team
From Taiwan
Production Lines
Full-Automatic Production Lines, Dust-Free Worksho
Equipment
Imported Glass Models (From Pilkington Glass in U.
Main Market
We Export to 120 Countries Around The World
Application
Bathtub, Sanitaryware, SPA, Shower Trays
Transport Package
PE or Craft Paper Covered Acrylic Sheets
Specification
1200*1800, 1220*1840, 1200*2400, 1220*2440 etc
Production Capacity
1200 Tons/Month
Product Description
Jumei Hot Selling Sanitary Bathtub Acrylic Sheet /Free samples available/
MOQ:13pieces/Special discounted price for FCL order
/OEM & ODM are welcome/
All colors customizable/High repurchase rate,low complaint rate WHY CHOOSE JUMEI CAST ACRYLIC SHEETS
1. 100% virgin Mistubishi MMA raw material
2. Best thickness tolerance and sufficient thickness
3. It is very bright when backlighting
4. One side frosted and the other side glossy
5. Weather resistance and no color fading outdoor use.
Product Description
| Material | 100% New Virgin Raw Mitsubishi Material |
| Thickness | 1.8(CAST ACRYLIC SHEET MINIMUM THICKNESS), 2, 3, 4, 5, 8,10,15,20, 30, 50,60mm (1.8-60mm) |
| Color | transparent(clear), white, opal, black, red, green, blue, yellow, etc. OEM color OK |
| Standard size | 1220*1830, 1220*2440,1270*2490, 1610*2550,1440*2940, 1850*2450, 1050*2050,1350*2000,2050*3050,1220*3050 mm |
| Certificate | CE, SGS, DE, and ISO 9001 |
| Equipment | Imported glass models (from Pilkington Glass in U. K. ) |
| MOQ | 30 pieces,can be mixed with colors/sizes/thickness |
| Delivery | 10-25 days |
General Cast Acrylic Sheet characters: 1) High transmittance up to 93%;2) Light weight: less than half as heavy as glass;3) Excellent weather resistance to against discoloration and deformation;4) Exceptional impact resistance: 7-16 times greater impact resistance than glass;5) Excellent chemical and mechanical resistance: resistance to acid and alkali;6) Ease of Fabrication: Acrylic sheet can be s painted, silk-screened, vacuum-coated, and also can be sawed, drilled, and machinedto form almost any shape when heated to a pliable state.
106ºC.
Temperature is 106ºC.
Japan Film imported
High temperature resistance film imported from Japan.
72Mpa Good tensile
Good tensile strength up to 72Mpa.
160ºC. Low molding
Low molding temperature at 160ºC.
Product size
| No | Dimension(mm) | MOQ | No | Dimension(mm) | MOQ | No | Dimension(mm) | MOQ |
| 1 | 1200*1800 | 18 | 30 | 2400*1450 | 13 | 59 | 1400*1900 | 18 |
| 2 | 1220*1840 | 18 | 31 | 1650*1800 | 13 | 60 | 1070*1800 | 18 |
| 3 | 1140*2310 | 18 | 32 | 1750*2010 | 13 | 61 | 1750*1770 | 13 |
| 4 | 1200*2400 | 18 | 33 | 1920*2010 | 13 | 62 | 1850*1600 | 13 |
| 5 | 1220*2440 | 18 | 34 | 1230*1980 | 18 | 63 | 1750*2220 | 13 |
| 6 | 1280*2500 | 18 | 35 | 1550*2050 | 13 | 64 | 1900*2060 | 13 |
| 7 | 1340*2580 | 18 | 36 | 1350*2270 | 18 | 65 | 1000*1900 | 18 |
| 8 | 1350*2000 | 18 | 37 | 1200*2060 | 18 | 66 | 1180*1930 | 18 |
| 9 | 1620*2560 | 13 | 38 | 1220*3050 | 18 | 67 | 1120*1900 | 18 |
| 10 | 1800*2400 | 13 | 39 | 950*1850 | 18 | 68 | 1100*2000 | 17 |
| 11 | 1450*2950 | 13 | 40 | 1150*1850 | 18 | 69 | 1660*2830 | 13 |
| 12 | 2050*3050 | 13 | 41 | 900*2450 | 18 | 70 | 1840*1110 | 17 |
| 13 | 1540*1540 | 13 | 42 | 1080*1890 | 18 | 71 | 1850*1250 | 17 |
| 14 | 1180*1980 | 18 | 43 | 1580*1580 | 13 | 72 | 2230*1800 | 13 |
| 15 | 1230*2140 | 18 | 44 | 1350*2180 | 18 | 73 | 1730*910 | 18 |
| 16 | 1250*2160 | 18 | 45 | 1320*1950 | 18 | 74 | 910*1810 | 18 |
| 17 | 1710*1850 | 13 | 46 | 1550*1750 | 13 | 75 | 1500*1700 | 13 |
| 18 | 1730*1730 | 13 | 47 | 1250*2050 | 18 | 76 | 1650*1800 | 13 |
| 19 | 1830*1850 | 13 | 48 | 1430*2830 | 13 | 77 | 1650*2000 | 13 |
| 20 | 1730*1990 | 13 | 49 | 1500*2950 | 13 | 78 | 1110*1980 | 18 |
| 21 | 1000*2000 | 18 | 50 | 1500*2410 | 13 | 79 | 1620*1900 | 13 |
| 22 | 980*1980 | 18 | 51 | 2270*2270 | 13 | 80 | 2000*1870 | 13 |
| 23 | 1900*1990 | 13 | 52 | 900*1900 | 18 | 81 | 1400*2200 | 13 |
| 24 | 1830*2030 | 13 | 53 | 900*1600 | 18 | 82 | 1700*960 | 18 |
| 25 | 1950*2030 | 13 | 54 | 1650*1950 | 13 | 83 | 1900*960 | 18 |
| 26 | 1440*1840 | 13 | 55 | 1250*2750 | 18 | 84 | 1800*960 | 18 |
| 27 | 1320*2130 | 18 | 56 | 1660*2320 | 13 | 85 | 1050*2100 | 13 |
| 28 | 1550*2250 | 13 | 57 | 2530*1900 | 13 | | | |
| 29 | 1060*1940 | 18 | 58 | 910*1850 | 18 | | | |
Physical Property of Sanitary
| | Property | Testing standard | Unit | Value |
| OPTICAL | HAZE | GB/T 2410 | % | 0.5 |
| Refractive Index | GB/T 2410 | - | 1.49 |
| MECHANICAL | Tensile Strength | GB/T 1040 | Mpa | 70 |
| Tensile Strain at break | GB/T 1040 | % | 3 |
| Bending Strength | GB/T 9341 | Mpa | 110 |
| Modulus of Elasticity in Tension | GB/T 1040 | Mpa | 3000 |
| Rockwell Hardness | GB/T 3398 | HRC | 100 |
| Barcol Hardness | GB/T 3854 | MPA | 45 |
| Charpy non-notch impact strength | GB/T 1043 | KJ/ | 17 |
| THERMAL | Specific Heat Capacity | QJ 1521 | J/gºC | 1.5 |
| Thermal Expansion Coefficient | GB 1036-2008 | ºC-1 | 7x10-5 |
| Vicat Softening Temperature | GB/T 1633-2000 | ºC | 106 |
| Dynamic viscoelasticity*1 | Forming characteristics | | 5 |
| GENERAL | Specific Gravitity | GB 4472-84 | - | 1.2 |
| Water Absorption | GB/T 1034-2008 | % | 0.35 |
| Combustibility | GB 8624-2012 | - | Combustible |
Application

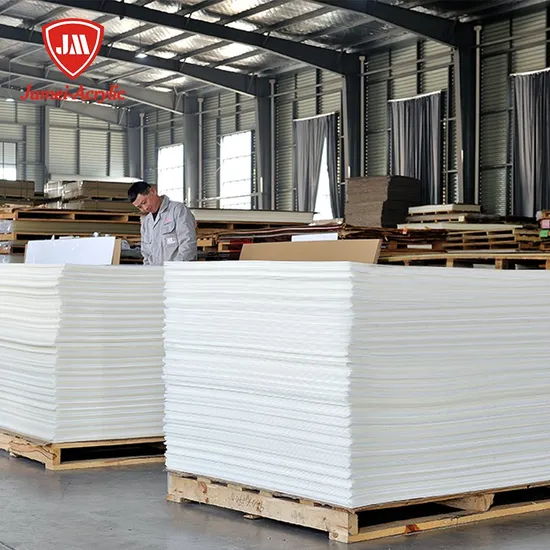

Our factory
Customer feedback
FAQ
* 1, Q: Are you a manufacturer or trading company?A: We are a professional manufacturer with 15 years experience in this field.* 2, Q: How can i get the sample? A: Small samples available are free, just freight collect.* 3, Q: How long can I expect to get the sample?A: We can prepare samples within 3 days. Usually it takes about 5-7 days for the delivery.* 4, Q: What is your MOQ? A: MOQ is 30pieces/order. Each size, thickness. * 5, Q: What colors can you make?
A: We have 60 regular colors, We can customize special color according to your requirement.
* 6, Q: Can we have our Logo or company name to be printed on your package?A: Sure. Your Logo can be putted on the package by printing or sticker.* 7, Q: What is your lead time for mass production?A: Normally 10-30 days, depends on the size, quantity and season.* 8, Q: What is your payment term?A: T/T, L/C, Paypal, Western Union, DP* 9, Q: How do you pack it?A: Each sheet covered by PE film or craft paper, around 1.5 tons packed in a wood pallet.
>>
